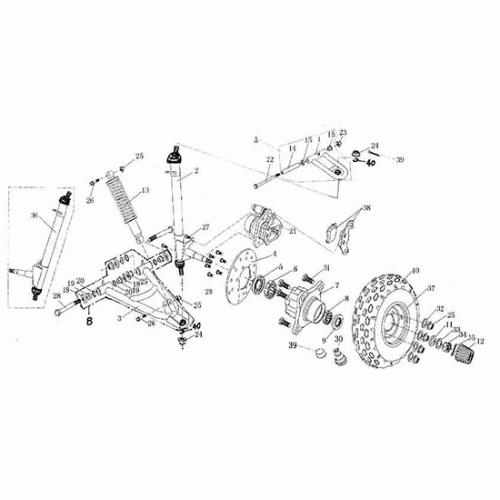

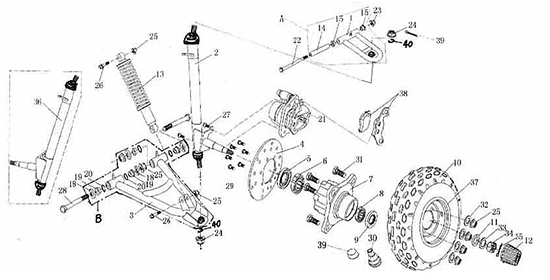

Suspension (Dazon Raider 150 2005 and Older)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| A |
Suspension Arm Assy., Upper
5110A-BCB0-0010
|
|||
| B |
Suspension Arm Subassy., Lower
5120A-BCB0-0010
|
|||
| 1 |
Suspension Arm Comp.., Upper
51100-BCB0-0000
|
$25.10 $18.83 | ||
| 2 |
Strut, Front Left
51500-BCA0-0010
|
|||
| 4 |
Brake Disc, Front
45120-BCA0-0000
|
$38.42 $28.81 | ||
| 5 |
Seal, Dust 25x47-7
91201-BCA0-0000
|
|||
| 6 |
Radial Ball Bearing, 6204C3
96100-62040
|
$16.85 $12.64 | ||
| 7 |
Hub,Front Wheel
4460A-BCA0-0000
|
$57.49 $43.12 | ||
| 8 |
Radial Ball Bearing, 6203
96100-62030
|
$10.46 $7.85 | ||
| 9 |
Seal, Oil
91202-BCA0-0000
|
$2.65 $1.99 | ||
| 10 |
Front Tire 21x7-10
44710-BDA0-0000
|
$80.96 $60.72 | ||
| 11 |
Spacer, Front Wheel Hub
44301-BCA0-0000-0C
|
|||
| 12.1 |
Cap, Rear Wheel
44691-BCA0-0000
|
|||
| 12.2 |
Cap, Rear Wheel Axle
44691-BCA0-0001
|
|||
| 13.1 |
Shock Absorber Assy., Front
51400-BCA0-0000
|
|||
| 13.2 |
Shock Absorber Assy., Front
51400-BCA0-0001
|
|||
| 14 |
Spacer, Center
51109-BCA0-0000
|
|||
| 15 |
Bush, Lower Suspension Arm
51108-BCA0-0000
|
|||
| 18 |
Cap, Dust
51209-BCA0-0000
|
|||
| 19 |
Bush, Lower Suspension Arm
51208-BCA0-0000
|
