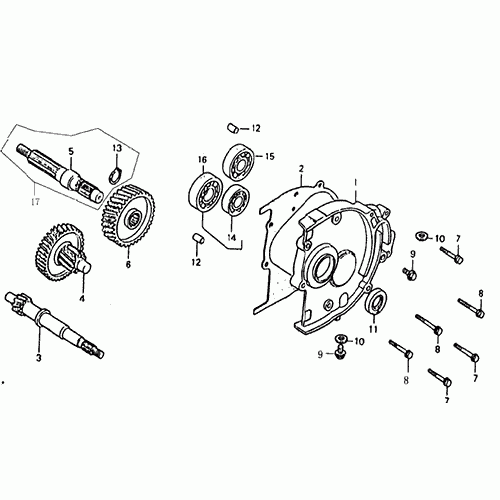

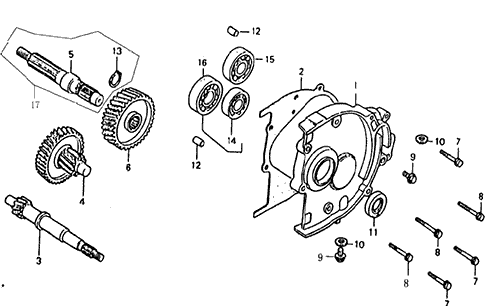

Transmission (Dazon Raider 150 2005 and Older)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Cover, Gearbox
21301-SAA0-0000
|
$69.23 | ||
| 2 |
Gasket, Gearbox Cover
21395-SAA0-0000
|
$5.58 | ||
| 3 |
Shaft, Drive
23411-SCA0-0000
|
$69.23 | ||
| 4 |
Shaft, Counter
23420-SCA0-0000
|
$46.82 | ||
| 5 |
Shaft ,Final Length: 215.5mm
23431-SCA0-0001
|
$100.46 | ||
| 6 |
Gear, Final Shaft
23432-SCA0-0000
|
$42.02 | ||
| 7 |
Bolt, Flange (Convex )M6x28
96010-06028-0B
|
|||
| 8 |
Bolt, Flange
96010-06035-0B
|
$1.26 | ||
| 9 |
Bolt, Flange (Concave )M8x12
95710-08012-0B
|
$1.05 | ||
| 10 |
Washer
94110-08E01-AL
|
$0.28 | ||
| 11 |
Oil Seal 20x32x6
91201-SAA0-0000
|
$4.18 | ||
| 12 |
Pin, Dowel
94310-08140
|
$0.49 | ||
| 13 |
Spring Ring,Drive Main Shaft
94510-20000-0E
|
$0.63 | ||
| 14 |
Radial Ball Bearing, 6202
96100-62020
|
|||
| 15 |
Radial Ball Bearing, 6203
96100-62030
|
$10.46 | ||
| 16 |
Radial Ball Bearing, 6204C3
96100-62040
|
$16.85 | ||
| 17 |
Shaft Comp., Final
2343A-SCA0-0001
|
$100.46 |
