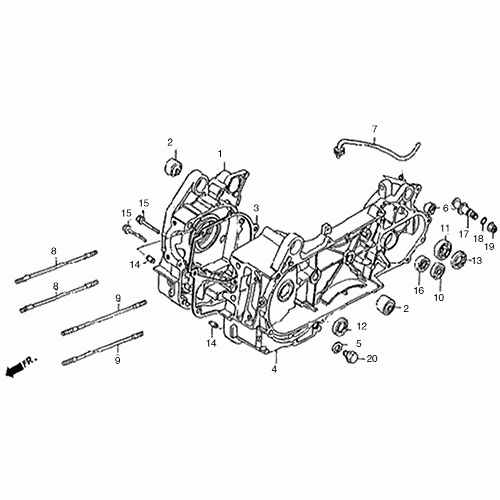

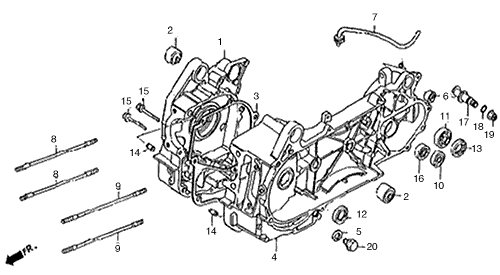

Crankcase (Dazon Raider 150 2005 and Older)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Crankcase Assy., R.
11100-SCA3-0000
|
$228.06 | ||
| 2 |
Bush, Engine Hanger Rubber
11102-SBA0-0000
|
$3.32 | ||
| 3 |
Gasket, Left/ Right Crankcase
11192-SAA0-0000
|
$6.97 | ||
| 4 |
Crankcase Assy., Left
11200-SCA0-0000
|
$228.06 | ||
| 5 |
Washer
94110-12E01-AL
|
|||
| 6 |
Bush, Rear Shock Absorber 8.2x20x19
11203-SBA0-0000
|
$5.58 | ||
| 7 |
Breather Tube, Gearbox
11221-SAA0-0000
|
|||
| 8 |
Bolt, 2 Stud 8x198
90033-SAA0-0000-0B
|
$4.32 | ||
| 9 |
Bolt, 2 Stud 8x208
90034-SAA0-0000-0B
|
$4.60 | ||
| 10 |
Bearing
96100-63010
|
|||
| 11 |
Bearing 6004LLU
96100-60040-LLU
|
$12.55 | ||
| 12 |
Oil Seal 19.8x30x5
91203-SBA0-0000
|
$10.60 | ||
| 13 |
Oil Seal 27x42x7
91204-SBA0-0000
|
|||
| 14 |
Pin, Dowel
94310-08140
|
$0.49 | ||
| 15 |
Bolt, Flange M6*50
96010-06050
|
|||
| 16 |
Radial Ball Bearing, 6002
96100-60020
|
|||
| 17 |
Dowel Pin ,Brake Drum
11204-SCA0-0000
|
|||
| 18 |
O-ring
91304-SBA0-0000
|
|||
| 19 |
Lock Nut, Flange
90210-08E01-0B
|
$1.26 | ||
| 20 |
Bolt, Drain Plug 12x12
90035-SAA0-0000
|
