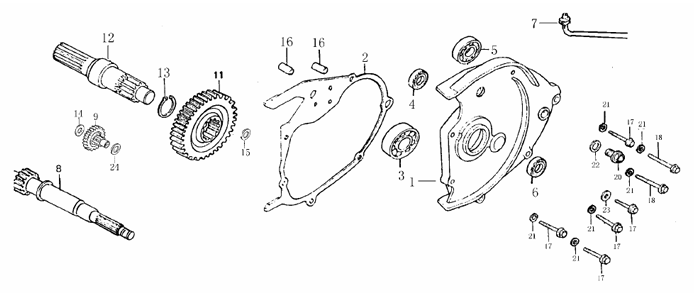

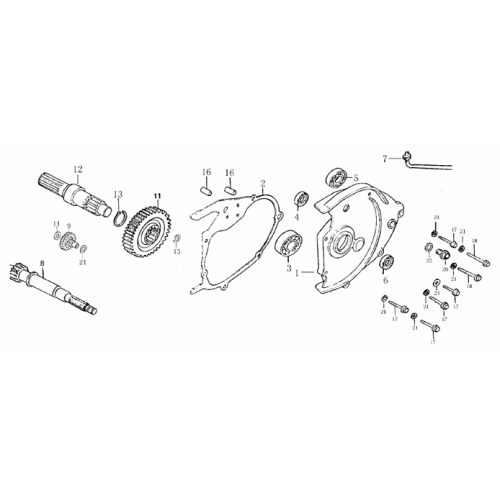

Transmission | Gear Box (Dazon Buggy 175)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Cover Comp., Gear Box
21300-SBH0-0000
|
|||
| 2 |
Gasket, Gear Box Cover
21395-SBH0-0000
|
|||
| 3 |
Radial Ball Bearing, 6204C3
96100-62040
|
$16.85 | ||
| 4 |
Bearing, Needle NK1412
91901-SBH0-0000
|
|||
| 5 |
Radial Ball Bearing, 6203
96100-62030
|
$10.46 | ||
| 6 |
Oil Seal 20x32x6
91201-SAA0-0000
|
$4.18 | ||
| 7 |
Tube Assy, Breather
11221-SBH0-0000
|
|||
| 8 |
Drive Shaft, Main
23411-SBH0-E000
|
|||
| 9 |
Drive Shaft, Sub.
2342A-SBH0-E000
|
|||
| 11 |
Gear, Final Shaft
23432-SBH0-E000
|
|||
| 12 |
Shaft, Final
23431-SCF0-E000
|
|||
| 13 |
Circlip, External 20mm
94510-20000-OE
|
$0.63 | ||
| 14 |
Washer ,Stop
94110-14E02-ST
|
$2.09 | ||
| 15 |
Washer, Steel 17*25*1
94110-17E01-ST
|
$0.54 | ||
| 16 |
Pin, Dowel
94310-10160
|
|||
| 17 |
Bolt, Flange
96010-06030-0D
|
$1.26 | ||
| 18 |
Bolt, Flange
96010-06035-0D
|
$1.26 | ||
| 20 |
Drain Bolt, Gear Box M10*12
90035-SBH0-0000
|
$1.81 | ||
| 21 |
Washer, Cone
90401-06E01-ST
|
$0.60 | ||
| 22 |
Washer ,Aluminum
94110-10E02-AL
|
$0.70 |
