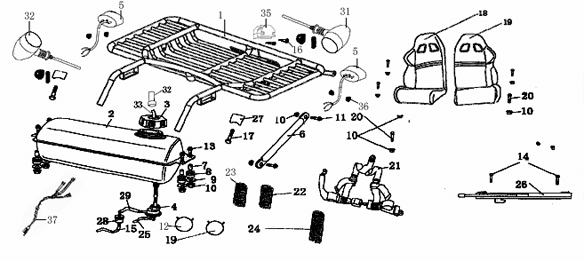

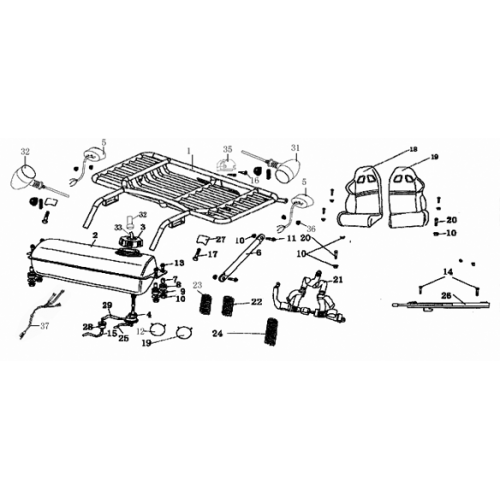

Fuel Tank Assy (Dazon Buggy 175)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Rack Comp., R.
82101-BCC1-E001
|
|||
| 2 |
Fuel Tank Comp.
17510-BCC0-0000
|
|||
| 3 |
Cap, Fuel Tank Comp.
17620-BCC0-0002
|
|||
| 4 |
Petcock, Fuel Tank Comp.
16950-TBA0-0000
|
$18.83 | ||
| 5 |
Tail Lamp
33701-BCA0-0000
|
|||
| 6 |
Supporter, R. Rack
82102-BCD1-0001
|
|||
| 7 |
Inner Collar, Fuel Tank
17519-BCA0-0000-0C
|
|||
| 8 |
Rubber Spacer, Fuel Tank
17518-BCA0-0000
|
|||
| 9 |
Washer, Flat
94110-08B01-0C
|
$0.28 | ||
| 10 |
Lock Nut,Flange
90210-08B01-1B
|
|||
| 11 |
Bolt, Flange
95710-08025-0C
|
|||
| 12 |
Circlip, Air Tube
95002-TCB0-0000
|
$0.21 | ||
| 13 |
Bolt, Flange
95710-08030-0C
|
$1.05 | ||
| 14 |
Bolt, Flange
95710-08016-1B
|
$1.05 | ||
| 15 |
Tube, Air
17684-BCA0-0000
|
$7.23 | ||
| 16 |
Screw, Tapping
93930-42100-0C
|
|||
| 17 |
Bolt,Flange
95710-08055-1B
|
|||
| 18 |
Seat Cushion, L.
77210-BCD0/BCD1-0000
|
|||
| 19 |
Seat Cushion, R.
77215-BCD0/BCD1-0000
|
|||
| 20 |
Bolt, Flange
95710-08050-1B
|
