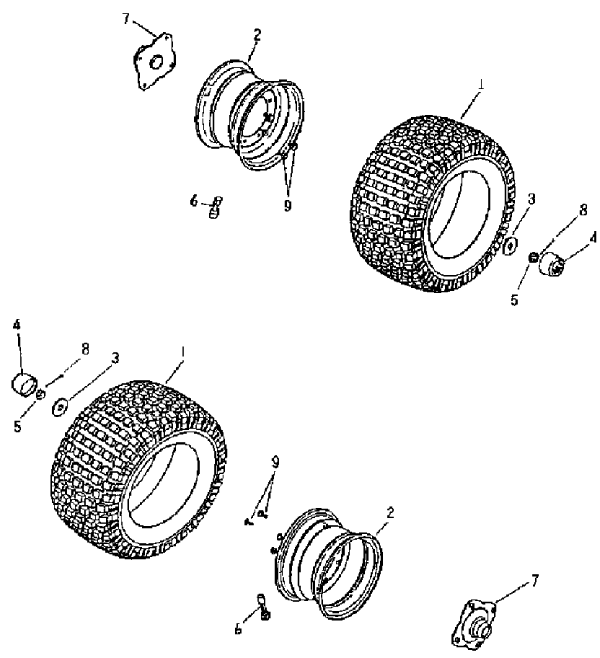

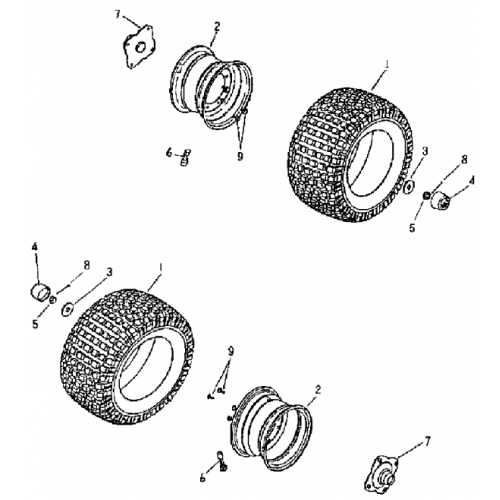

Rear Wheel (Bombardier Mini DS 90 4T)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Front/Rear Tire 20x7-8
A42711170000
|
|||
| 2 |
Rim Ass'Y
A42701146000
|
|||
| 3 |
Plain Washer (14 X 40 X 4.5)
A941011440045
|
$1.39 | ||
| 4 |
Rubber Cover
A4281414500A
|
$5.27 | ||
| 5 |
Scotch Flanged Nut M14
A940521400021
|
$4.18 | ||
| 6 |
Air Nozzle
A42616145000
|
$4.18 | ||
| 7 |
Shaft Connector
A42036145001
|
$41.58 | ||
| 8 |
Cotter Pin (3 X 32)
A9420130320
|
$0.42 | ||
| 9 |
Hex. Washer Face Bolt (10 X 20)
A960001002014
|
$3.01 |
