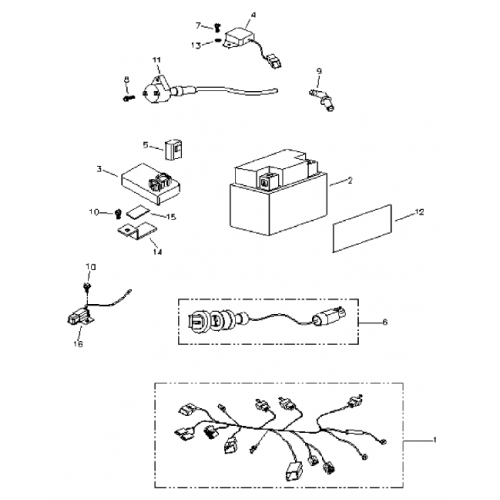

Electrical Components (Bombardier Mini DS 90 4T)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Main Wire Harness
A32100238000
|
|||
| 2 |
Battery BTX4L-BS
A31500166000
|
$36.99 | ||
| 3 |
C.D.I. Unit
A3041017500A
|
$104.41 | ||
| 4 |
Regulator Rectifier
A31600110000
|
$44.76 | ||
| 5 |
Starting Relay
A38501152000
|
$36.56 | ||
| 6 |
Main Switch Ass'Y
A3510016600A
|
$44.99 | ||
| 7 |
Pan Head Phillips Bolt M5X12
A9350005012
|
$0.56 | ||
| 8 |
Hex. Washer Face Bolt M5 X 24
A960000502408
|
$2.23 | ||
| 9 |
Spark Plug Cap
A30700168000
|
$10.46 | ||
| 10 |
Hex. Washer Face Bolt M6 X 12
A960000601210G
|
$1.34 | ||
| 11 |
High Tension Coil
A30510175000
|
$44.12 | ||
| 12 |
Warning Decal (Battery)
A87723116000
|
$0.42 | ||
| 13 |
Spring Washer (6 X 12 X 1.5)
A941110612015
|
$0.50 | ||
| 14 |
Battery Bracket
A54317175000
|
$4.18 | ||
| 15 |
Sponge Pad
A30414175000
|
$0.42 |
