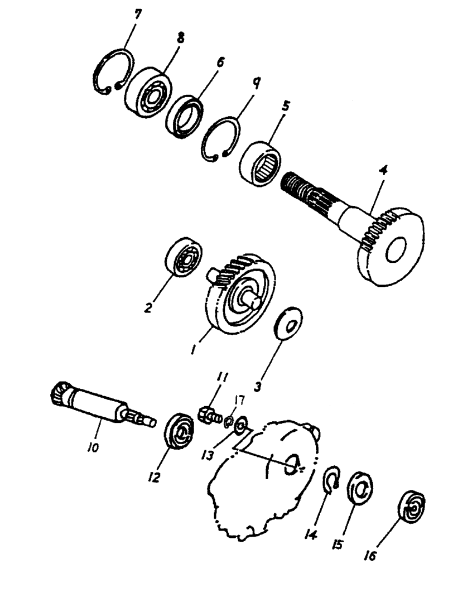

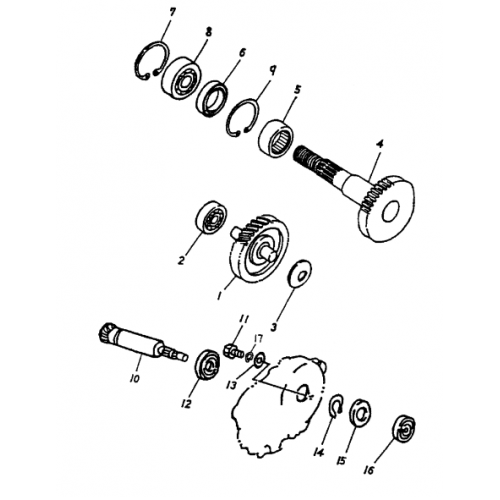

Transmission (Bombardier Mini DS 50 2T)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Main Axle Comp
A23420116000
|
$80.08 | ||
| 2 |
Radial Ball Bearing (6201)
A9610062010
|
$8.37 | ||
| 3 |
Plain Washer (12.2 X 29 X 1.6)
A941011229016
|
$1.33 | ||
| 4 |
Drive Axle (36T)
A23430116000
|
|||
| 5 |
Needle Bearing (Hmk2515)
A96200253315
|
$20.03 | ||
| 6 |
Oil Seal (25 X 35 X 6)
A9650025356
|
|||
| 7 |
Internal Circlip (Rtw-43)
A945124300R
|
$4.18 | ||
| 8 |
Radial Ball Bearing (6004Lu)
A961006004U
|
$18.45 | ||
| 9 |
Internal Circlip (Rtw-34)
A945123400R
|
$2.09 | ||
| 10 |
Primary Drive Gear (13T)
A23411116000
|
$50.43 | ||
| 11 |
Hex. Bolt M6 X 10
A920000601010
|
$1.05 | ||
| 12 |
Radial Ball Bearing (6003)
A9610060030
|
$13.18 | ||
| 13 |
Plain Washer (6 X 20 X 0.5)
A941010620005
|
$1.39 | ||
| 14 |
External Circlip
A945111700S
|
$1.05 | ||
| 15 |
Oil Seal (17 X 28 X 5.5)
A9650017285
|
|||
| 16 |
Radial Ball Bearing (638Rd)
A96100638RD
|
$18.45 | ||
| 17 |
Spring Washer (6 X 12 X 1.5)
A941110612015
|
$0.50 |
