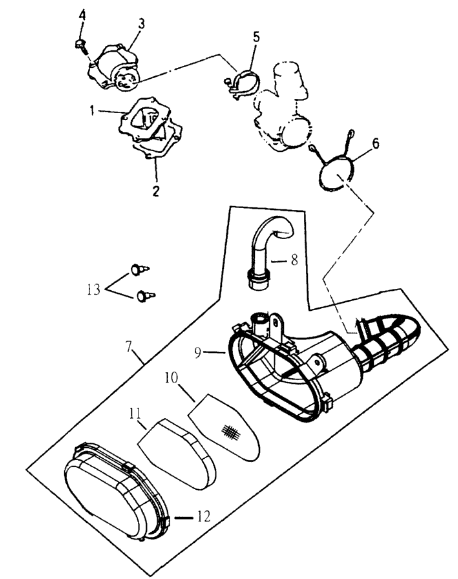

Reed Valve | Air Cleaner (Bombardier Mini DS 50 2T)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Reed Valve Ass'Y
A14100116000
|
$56.60 | ||
| 2 |
Reed Valve Gasket
A17111116000
|
|||
| 3 |
Intake Manifold
A17100116000
|
|||
| 4 |
Hex. Washer Face Bolt M6 X 18
A960000601808
|
$1.00 | ||
| 5 |
Intake Manifold Hose Clamp
A14110104000
|
$4.18 | ||
| 6 |
Clip
A9451040000
|
$1.09 | ||
| 7 |
Air Cleaner Ass'Y
A17200166000
|
|||
| 8 |
Guide Pipe (Includes 8 To 9)
XXX
|
|||
| 9 |
Air Cleaner Base
A17206166000
|
$51.98 | ||
| 10 |
Air Cleaner Net Filter
A17210166000
|
|||
| 11 |
Air Cleaner Element
A17205166000
|
|||
| 12 |
Air Cleaner Cover
A17207166000
|
|||
| 13 |
Ladder Bolt
A901110601218C
|
$1.51 |
