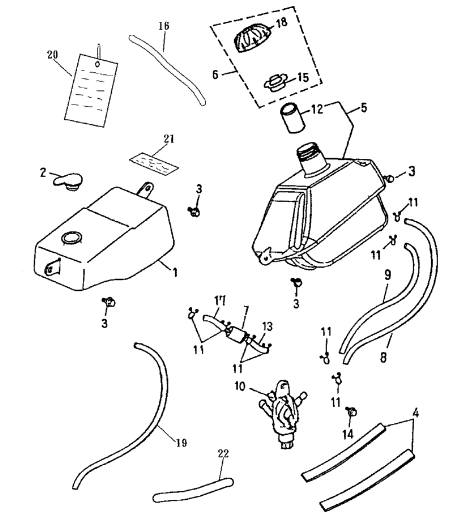

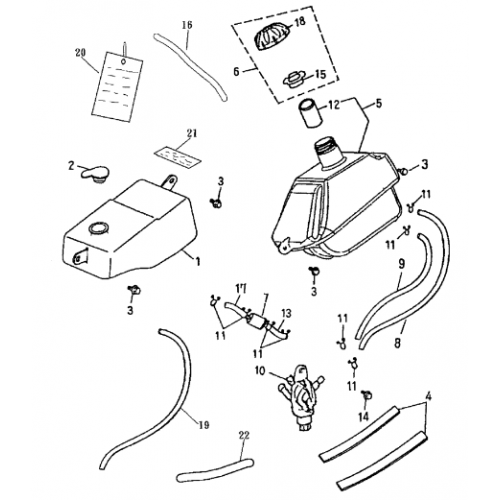

Fuel Tank | Oil Tank (Bombardier Mini DS 50 2T)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Oil Tank
A55100145000
|
|||
| 2 |
Oil Tank Cap
A55105145000
|
|||
| 3 |
Hex. Bolt M6 X 14
A920000601410
|
|||
| 4 |
Sponge Pad
A1750514500A
|
$4.69 | ||
| 5 |
Fuel Tank Comp
A17500166000
|
|||
| 6 |
Fuel Tank Cap
A1762014500A
|
|||
| 7 |
Filter Petrol
A16952145000
|
|||
| 8 |
Fuel Tube
A944000408300
|
$3.91 | ||
| 9 |
Fuel Tube
A944000408280
|
$10.57 | ||
| 10 |
Fuel Cup
A16950145000
|
$24.72 | ||
| 11 |
Clip
A9451008000
|
$0.56 | ||
| 12 |
Fuel Tank Tube
A17633145000
|
|||
| 13 |
Oil Tube
A944000408160
|
|||
| 14 |
Hex. Washer Face Bolt M6 X 12
A960000601210G
|
$1.34 | ||
| 15 |
Fuel Tank Cap Gasket
A17631145000
|
$1.67 | ||
| 16 |
Breather Hose
A944000408355
|
|||
| 17 |
Tube
A944000408075
|
|||
| 18 |
Fuel Tank Cap Body
A1762114500A
|
|||
| 19 |
Tube Cover
A944021617190
|
|||
| 20 |
Warning Label, Mini Ds (English)
704900301
|
