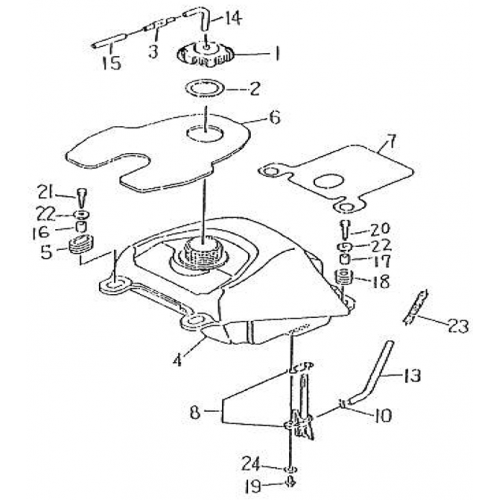

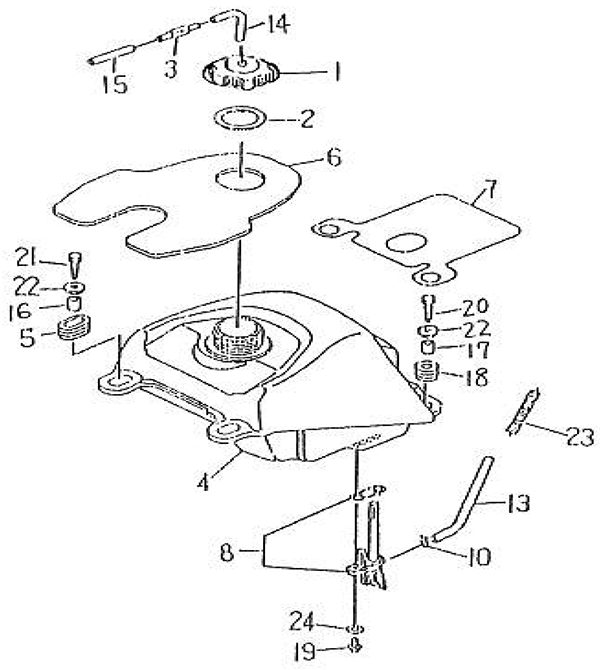

Fuel Tank (Barossa Silverhawk 250)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
CAP ASS'Y
43102-RAM-00
|
|||
| 2 |
CAP WASHER
43103-RAM-00
|
$2.15 | ||
| 3 |
CHECK,VALVE
43108-SK5-00
|
$8.37 | ||
| 4 |
FUEL TANK
43110-CBT-01
|
$127.99 | ||
| 5 |
GROMMET F
43151-RAM-00
|
$2.78 | ||
| 6 |
TRIM, COVER PANEL
43153-RAM-00
|
$10.46 | ||
| 7 |
GUARD
43154-RAM-00
|
$11.30 | ||
| 8 |
FUEL COCK ASS'Y
43500-CBT-00
|
$36.99 | ||
| 10 |
CLIP
90210-12010
|
$0.56 | ||
| 13 |
HOSE,FUEL
90310-50140
|
$5.58 | ||
| 14 |
HOSE 5*8*50
90310-50050
|
$3.35 | ||
| 15 |
HOSE 5*8*390
90310-50390
|
$3.49 | ||
| 16 |
COLLAR F
93510-061015-B
|
$2.09 | ||
| 17 |
COLLAR R
93510-061021-B
|
$2.79 | ||
| 18 |
GROMMET R
93580-102416
|
$2.79 | ||
| 19 |
SCREW, PAN HEAD
96318-06012-B
|
$0.70 | ||
| 20 |
BOLT, FLANGE
96414-06025-B
|
$1.05 | ||
| 21 |
BOLT, FLANGE
96414-06032-B
|
$1.05 | ||
| 22 |
WASHER, PLATE
97201-062220-B
|
$0.83 | ||
| 23 |
SPRING,COMPRESSION
97501-08140-B
|
