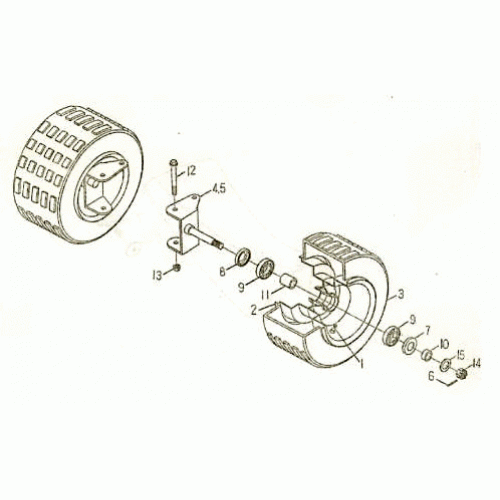

FRONT WHEEL (Kasea Skyhawk 50mini Quad)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
VALVE, RIM
42570-RAM-00
|
$3.49 $2.61 | ||
| 2 |
WHEEL, FRONT
42580-SK2-00
|
$34.82 $26.11 | ||
| 3 |
Tire 145x70-6
42590-SK2-00
|
$54.03 $40.52 | ||
| 4 |
KNUCKLE COMP, STEERING L
45861-SK2-00
|
$50.43 $37.82 | ||
| 5 |
KNUCKLE COMP, STEERING R
45866-SK2-00
|
$50.43 $37.82 | ||
| 6 |
PIN, COTTER 2.9*25
90240-29025-B
|
$0.35 $0.26 | ||
| 7 |
OIL SEAL 20*35*5
93110-20355
|
$5.58 $4.18 | ||
| 8 |
OIL SEAL SD22*35*7
93110-22357
|
$8.44 $6.33 | ||
| 9 |
BEARING,RADIAL BALL 6202 CS05/2A
93320-153511S
|
$10.46 $7.85 | ||
| 10 |
COLLAR
93510-152008-B
|
$5.58 $4.18 | ||
| 11 |
SPACER, BEARING
93510-152233-B
|
$4.88 $3.66 | ||
| 12 |
BOLT, FLANGE
94610-10100-B
|
$2.79 $2.09 | ||
| 13 |
NUT, NYLON
95311-101710-B
|
$1.26 $0.94 | ||
| 14 |
NUT, CASTLE
95321-142215-C
|
$4.21 $3.16 | ||
| 15 |
WASHER, PLATE 14.7*25.7*2
97201-142620-C
|
$1.05 $0.78 |
