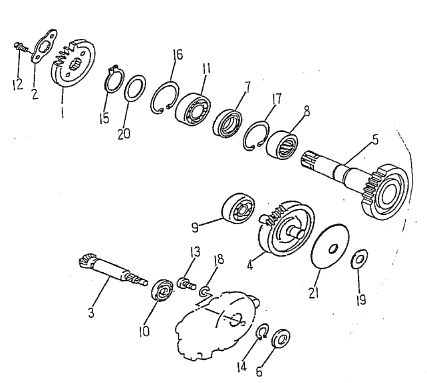

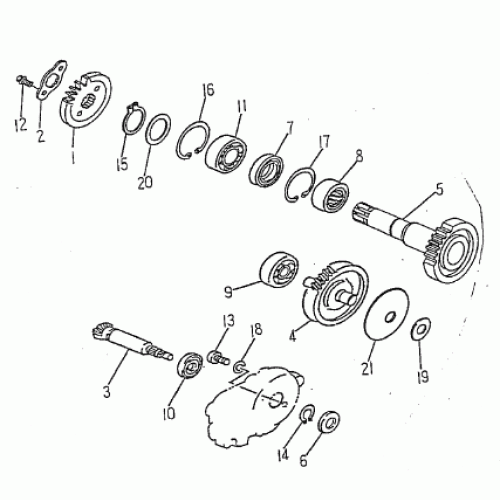

TRANSMISSION (Kasea Skyhawk 50 Quad)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
SPROCKET DRIVE 428-18T
25711-SK9-01
|
$15.15 | ||
| 2 |
PLATE, FIXING
25716-CHP-00
|
$3.56 | ||
| 3 |
GEAR, PRIMARY DRIVE (13T)
26111-YAF-00
|
$27.61 | ||
| 4 |
MAIN AXLE COMP (48/12T)
26410-YAF-00
|
$42.02 | ||
| 5 |
DRIVE AXLE ASSEMBLY (36T)
26420-SK5-00
|
$54.03 | ||
| 6 |
OIL SEAL
93110-17285
|
$6.19 | ||
| 7 |
OIL SEAL
93110-25356
|
$5.95 | ||
| 8 |
BEARING, NEEDLE ROLLER
93310-2533160
|
$15.25 | ||
| 9 |
BEARING, RADIAL BALL
93320-123210
|
$10.46 | ||
| 10 |
BEARING, RADIAL BALL
93320-173510
|
$14.80 | ||
| 11 |
BEARING, RADIAL BALL
93320-204212U
|
$12.55 | ||
| 12 |
BOLT, HEXAGON 6*10
96210-06010-B
|
$0.70 | ||
| 13 |
SCREW, PAN HEAD
96310-06010-B
|
$0.63 | ||
| 14 |
CIRCLIP
97010-17010
|
$1.39 | ||
| 15 |
CIRCLIP 20mm
97010-20012-K
|
$0.49 | ||
| 16 |
CIRCLIP
97012-42018
|
$1.39 | ||
| 17 |
Fuel Tube
17512-145-000
|
|||
| 18 |
WASHER, PLATE
97201-061910-B
|
$0.56 | ||
| 19 |
WASHER, PLATE
97201-122210
|
$1.05 | ||
| 20 |
WASHER, PLATE
97201-202810-K
|
$1.26 |
