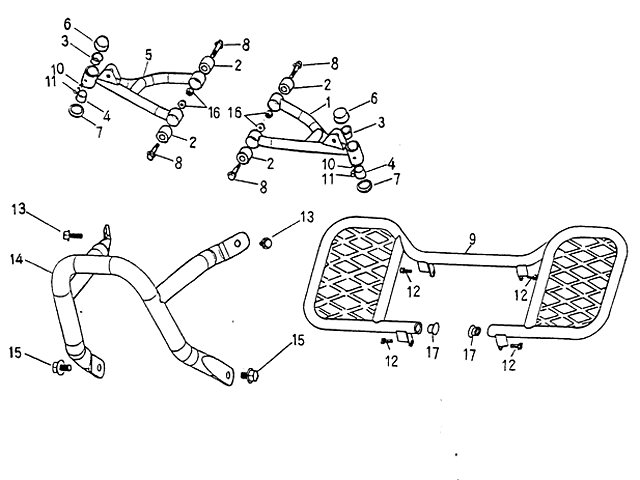

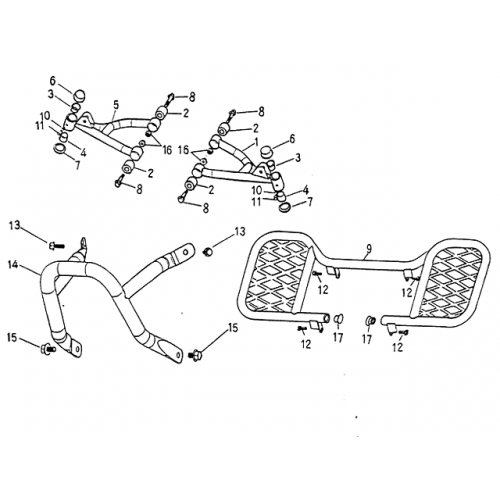

Arm, Floor Panel, Bumper (Blazer 90cc ATV)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Left Suspension Arm
51300-145-000
|
$66.14 $49.60 | ||
| 2 |
Rubber Bushing, 10*28*29
96400-102829
|
|||
| 3 |
Bush, 15.5
51201-145-000
|
|||
| 4 |
Bush, 17
51202-145-000
|
|||
| 5 |
Right Suspension Arm
51200-145-000
|
$62.99 | ||
| 6 |
Waterproof Cover
51203-145-000
|
|||
| 7 |
Dustproof Cover, ECO
51204-145-000
|
$3.77 $2.82 | ||
| 8 |
Hex Washer Face Bolt, 10*48
96000-10048-14G
|
$4.18 $3.14 | ||
| 9 |
Floor Panel(Rev.3)
64310-145-000
|
$97.33 $73.00 | ||
| 10 |
Grease Valve, 6mm X 5
96501-06000
|
$0.91 $0.68 | ||
| 11 |
Grease Valve Cap, 6mm
96502-06000
|
$0.72 $0.54 | ||
| 12 |
Hex Washer Face Bolt, 10*20
96000-10020-14G
|
$3.01 $2.26 | ||
| 13 |
Hex Flange Bolt, 6*16
96000-06016-10B
|
$0.67 $0.50 | ||
| 14 |
Bumper(Rev.3)
50104-145-000
|
$56.73 $42.55 | ||
| 15 |
Hex Flange Bolt, M8*16
96000-08016-12G
|
$2.01 $1.51 | ||
| 16 |
Hex Flange Nut With Serration, 10mm
94050-10000U
|
$0.67 $0.50 | ||
| 17 |
Floor Panel Rubber Cap
64330-145-000
|
$2.01 $1.51 |
