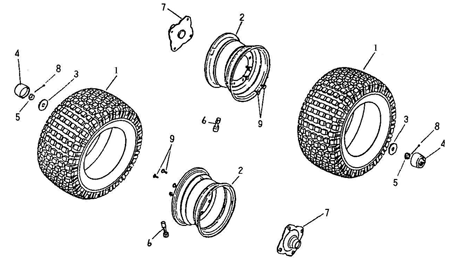

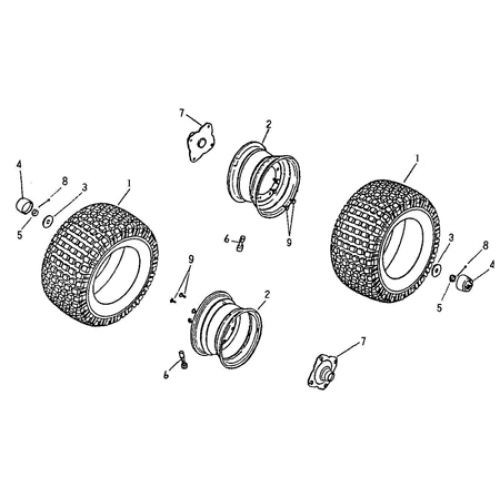

Rear Wheel (Adly ATV 90RV 4T)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Rear Tire 18x9.5-8
42811-146-00A
|
$72.69 $54.52 | ||
| 2 |
Rear Rim, 8*7
42801-146-000
|
$60.37 $45.28 | ||
| 3 |
Plain Washer, 14*40*4.5
94101-1440045C
|
$1.67 $1.26 | ||
| 4 |
Rubber Cover, ADLY
42814-145-000
|
|||
| 5 |
Scotch Flange Nut, 14mm
94052-14000-21C
|
$4.18 $3.14 | ||
| 6 |
Air Nozzle
42616-145-000
|
$4.18 $3.14 | ||
| 7 |
Rear Wheel Hub (Rev.3)
42036-145-001
|
$41.58 $31.19 | ||
| 8 |
Cotter Pin, 3*32
94201-30320B
|
$0.42 $0.31 | ||
| 9 |
Hex Washer Face Bolt, 10*20
96000-10020-14B
|
$3.01 $2.26 |
