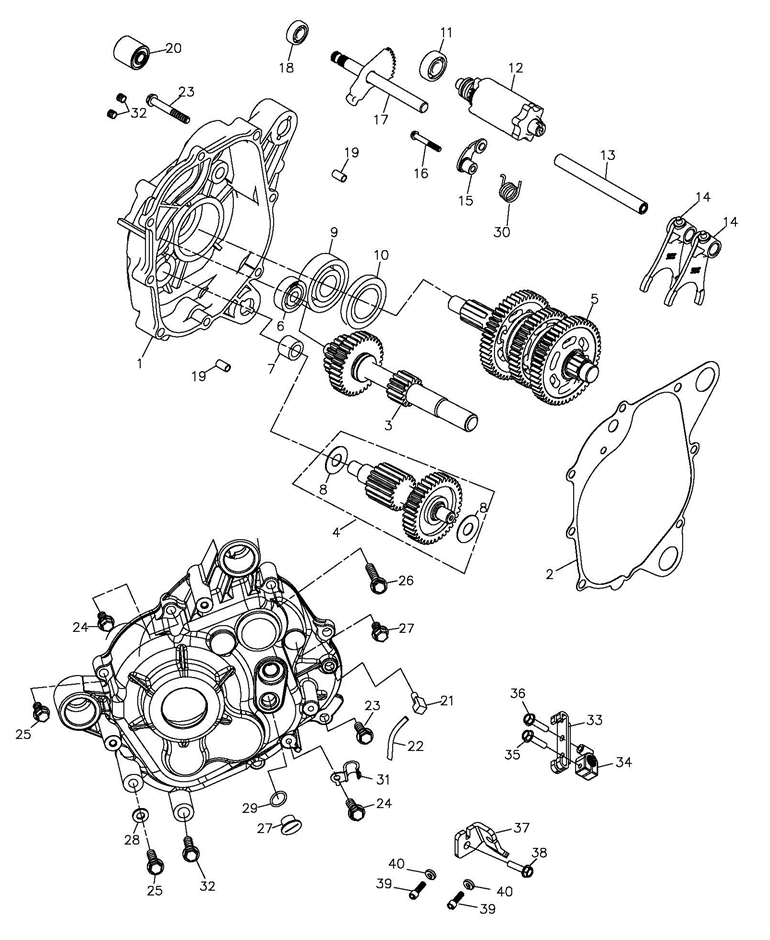

Transmission (Adly Mini Car 320)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Mission Cover, MINI-CAR
21301-912-000
|
$64.00 | ||
| 2 |
Mission Cover Gasket
21395-225-000
|
$15.82 | ||
| 3 |
Drive Shaft, 17T
23411-912-000
|
$152.81 | ||
| 4 |
Main Axle Comp, 39T
23420-912-000
|
$100.27 | ||
| 5 |
Main Axle Comp(As1528)
23421-225-000
|
|||
| 6 |
Final Gear Comp
23430-601-000
|
$250.05 | ||
| 7 |
Radial Ball Bearing, TMB301
96100-TMB301
|
$32.95 | ||
| 8 |
Needle Bearing, NK142216
96200-NK142216
|
$28.98 | ||
| 9 |
Radial Ball Bearing, 6305UU
96100-6305UU
|
$30.19 | ||
| 10 |
Oil Seal, TC32628
96500-32628
|
$4.76 | ||
| 11 |
Radial Ball Bearing, 6201C3
96100-62010
|
|||
| 12 |
Shift Drum Ass'Y
24300-225-000
|
$81.27 | ||
| 13 |
Shift Fork Guide Shaft
24241-169-000
|
$12.65 | ||
| 14 |
Gear Shift Fork
24231-225-000
|
$39.29 | ||
| 15 |
Reverse Shift Stopper Comp
24431-225-000
|
$10.14 | ||
| 16 |
Hex Flange Bolt, 6*22
96000-06022-10B
|
$3.35 | ||
| 17 |
Gear Shift Arm
24630-225-000
|
$23.55 | ||
| 18 |
Oil Seal, 12*24*5
96500-12245
|
$3.77 | ||
| 20 |
Rubber Bushing, 10*28*29
96400-102829
|
|||
| 21 |
Breather Hose Head
16610-104-00A
|
$7.03 |
