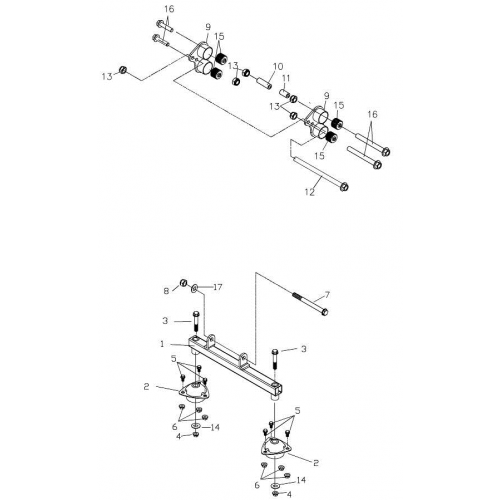

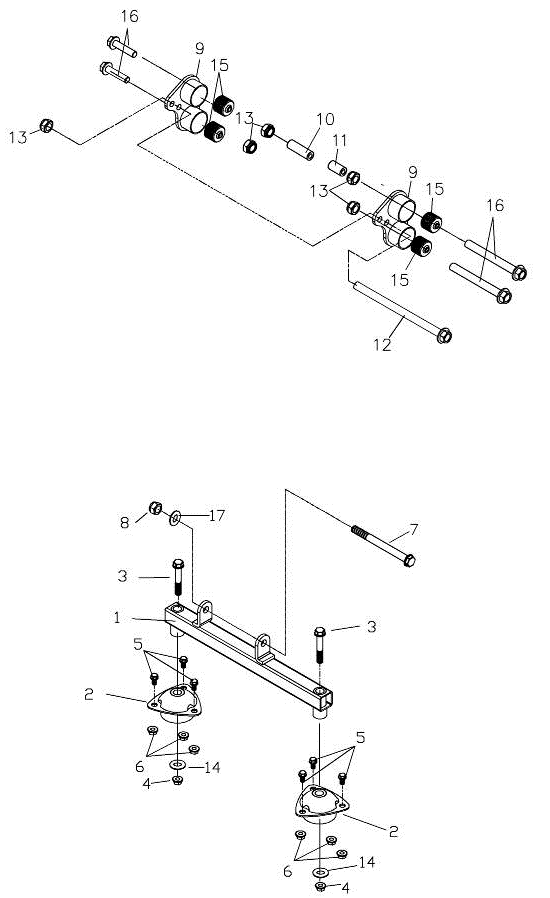

Engine Bracket (Adly Mini Car 320)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Engine Front Bracket Set
50359-912-001
|
$32.86 | ||
| 2 |
Engine Rubber, 12 holes , hardness 40
50372-801-001
|
|||
| 3 |
Hex Flange Bolt (Green Zinc), 12*110
96000-12110-14G
|
$7.61 | ||
| 4 |
Nylon Insert Lock Nut, M12
90350-12000G
|
$2.01 | ||
| 5 |
Hex Flange Bolt, M8*16
96000-08016-12G
|
$2.01 | ||
| 6 |
Nylon Nut, M8
90350-08000G
|
$3.35 | ||
| 7 |
Hex Washer Face Bolt, 10*135
96000-10135-14G
|
$8.93 | ||
| 8 |
Nylon Nut, M10*P1.25
90350-10000G
|
$0.67 | ||
| 9 |
R.Eng.R.Hanger, 26MM
50373-601-000
|
$29.67 | ||
| 10 |
Space Tube, 10*18*12
96401-101812
|
$5.07 | ||
| 11 |
Space Tube, 10*18*35
96401-101835
|
$6.09 | ||
| 12 |
Hex Washer Face Bolt, 10*165
96000-10165-14B
|
|||
| 13 |
Hex Flange Nut With Serration, 10mm
94050-10000C
|
$1.26 | ||
| 14 |
Plain Washer, 12*22*2
94101-1222020G
|
$0.83 | ||
| 15 |
Rubber Bush, 10*41*45
96400-104145
|
$12.68 | ||
| 16 |
Hex Washer Face Bolt, 10*60
96000-10060-14G
|
|||
| 17 |
Copper Plain Washer, 10*20*2
94101-1020020G
|
$0.84 |
