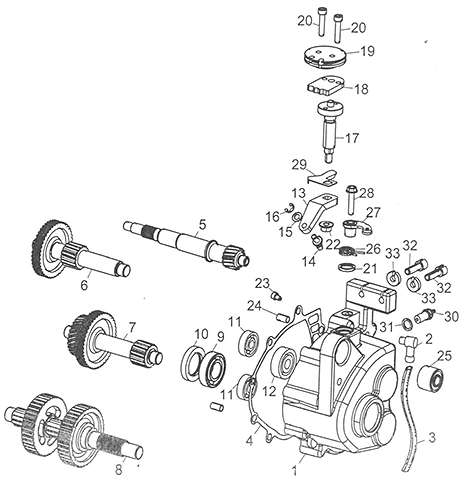

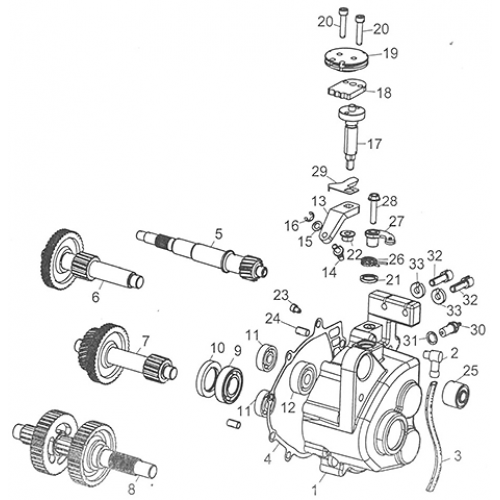

Transmission (Adly GK-125 (BK-125) 2005)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Mission Cover
21301-183-001
|
$59.99 | ||
| 4 |
Mission Cover Gasket
21395-183-000
|
|||
| 5 |
Drive Shaft
23411-183-000
|
$56.73 | ||
| 6 |
Reverse Idle Gear Ass'Y
23440-183-000
|
$60.37 | ||
| 7 |
Idle Gear Ass'Y
23420-183-000
|
$85.01 | ||
| 8 |
Final Gear Comp (183)
23430-197-000
|
$137.76 | ||
| 9 |
Radial Ball Bearing, 6005 ZZ
96100-6005ZZ
|
$25.04 | ||
| 10 |
Oil Seal, 30*47*7
96500-30477
|
$4.76 | ||
| 11 |
Radial Ball Bearing, 6202
96100-62020
|
|||
| 12 |
Radial Ball Bearing, TMB301
96100-TMB301
|
$32.95 | ||
| 13 |
Gear Shift Fork
24231-183-000
|
$10.25 | ||
| 14 |
Gear Shift Fork Guide Shaft
24232-183-000
|
$13.18 | ||
| 15 |
Copper Plain Washer, 6.5*12*1
94101-0612010
|
$1.34 | ||
| 16 |
External Cir Clip, ETW-5
94511-0500E
|
$1.09 | ||
| 17 |
Gear Shift Fork Shaft
24631-183-000
|
$40.34 | ||
| 18 |
Gear Shift Arm
24630-183-000
|
$10.25 | ||
| 20 |
Hex Socket Bolt, 6*28
91000-06028
|
|||
| 21 |
Oil Seal
96500-14203
|
$3.35 | ||
| 22 |
Nylon Insert Lock Nut, 8mm
90350-08000
|
$3.34 | ||
| 23 |
Dowel Bolt
24632-183-000
|
$2.34 |
