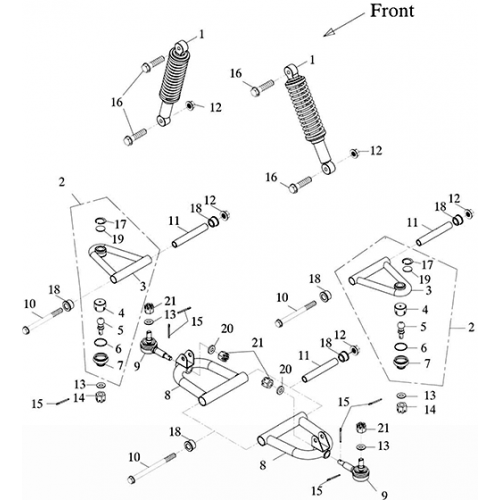

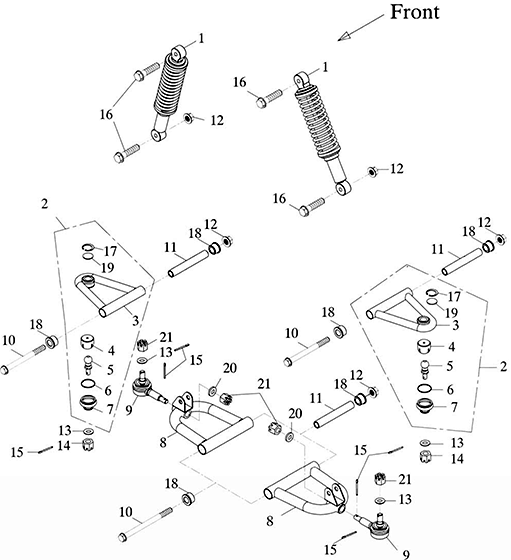

Front Suspension (Adly GK-125 (BK-125) 2005)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Adly GK-125 Go Kart Front Shock
51400-168-000
|
$56.73 | ||
| 2 |
Upper A-Arm Ass'Y
51214-168-000
|
|||
| 3 |
Upper A-Arm
51210-168-000
|
|||
| 4 |
Bush
51211-168-000
|
$3.01 | ||
| 5 |
Link Ball
51213-168-000
|
|||
| 6 |
Clip
94510-31000
|
|||
| 7 |
Dust Seal
51212-168-000
|
|||
| 8 |
Lower Oscillation Arm
51200-168-000
|
$31.63 | ||
| 9 |
Link Ball Ass'Y
51220-168-000
|
$29.99 | ||
| 10 |
Hex Washer Face Bolt, 10*179
96000-10175-14
|
$6.44 | ||
| 11 |
Suspension Arm Spacer
51205-168-000
|
$6.59 | ||
| 12 |
Nylon Nut, M10*P1.25
90350-10000G
|
$0.67 | ||
| 13 |
Plain Washer, 10*20*2
94101-1020020
|
$0.59 | ||
| 14 |
Scotch Flange Nut, 10mm
94052-10000-14
|
$4.18 | ||
| 15 |
Cotter Pin, 2*19
94201-20190
|
$0.42 | ||
| 16 |
Hex Flange Bolt, M10*40
96000-10040-14G
|
$4.02 | ||
| 17 |
Internal Cir Clip, RTW-24
94512-2400R
|
$1.30 | ||
| 18 |
Bush
51202-168-000
|
|||
| 19 |
Washer
51215-168-000
|
$2.09 | ||
| 20 |
Plain Washer, 12*22*2
94101-1222020
|
$0.83 |
