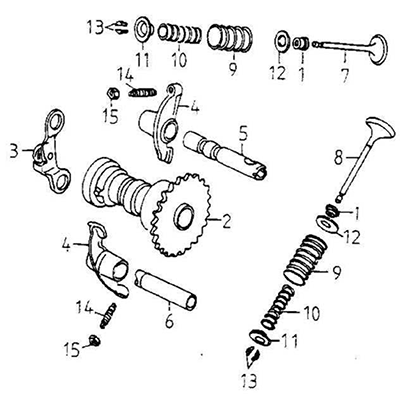

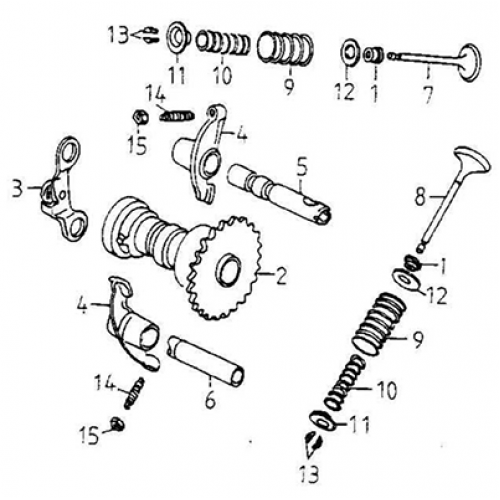

Camshaft (Adly GK-125 (BK-125) 2005)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Valve Stem Seal
12209-120-000
|
$4.69 | ||
| 2 |
Camshaft Comp
14400-120-000
|
$60.37 | ||
| 3 |
Stopper Plate Comp
14456-120-000
|
$5.86 | ||
| 4 |
Arm Valve Rocker
14431-120-000
|
$25.37 | ||
| 5 |
Shaft,In. Rocker Arm
14452-120-000
|
$9.96 | ||
| 6 |
Shaft,Ex. Rocker Arm
14453-120-000
|
$5.13 | ||
| 7 |
In. Valve
14711-120-000
|
$16.47 | ||
| 8 |
Ex. Valve
14721-120-000
|
$25.04 | ||
| 9 |
Valve Outer Spring
14751-120-000
|
$3.35 | ||
| 10 |
Valve Inner Spring
14761-120-000
|
$2.48 | ||
| 11 |
Valve Spring Retainer
14771-120-000
|
$4.76 | ||
| 12 |
Valve Spring Seat
14775-120-000
|
$0.84 | ||
| 13 |
Cotter
14781-120-000
|
$4.18 | ||
| 14 |
Valve Gap Adjusting Screw
90012-120-000
|
$5.86 | ||
| 15 |
Valve Gap Adjusting Nut
90206-120-000
|
$3.35 |
