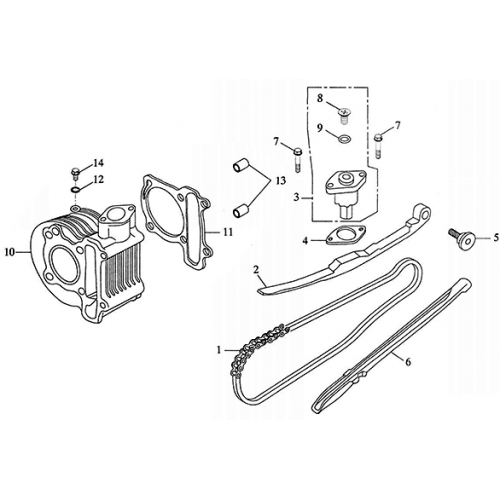

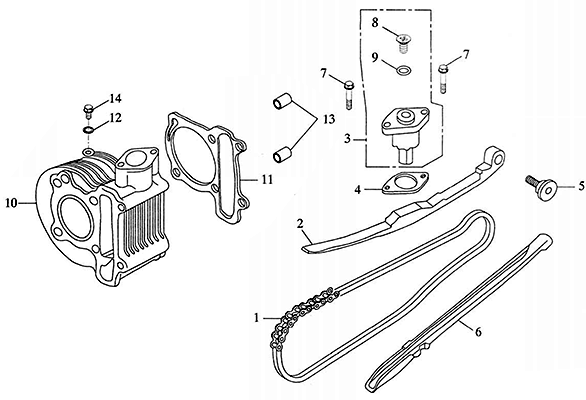

Cam Chain, Cylinder (Adly GK-125 (BK-125) 2005)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Chain Cam
14401-120-000
|
$44.12 | ||
| 2 |
Cam Chain Tensioner
14550-120-000
|
$23.72 | ||
| 3 |
Tensioner Lifter Ass'Y
14521-120-000
|
$31.63 | ||
| 4 |
Gasket,Tensioner Lifter
14523-120-000
|
$3.35 | ||
| 5 |
Pivot,Cam Chain Tensioner
14535-120-000
|
$5.86 | ||
| 6 |
Cam Chain,Guide
14500-120-000
|
$13.18 | ||
| 7 |
Hex Washer Face Bolt 6*22
96000-06022-08
|
|||
| 8 |
Round Phillips Bolt, 6*6
93000-06006
|
|||
| 9 |
Oil-Ring, 9.5*1.5
91309-120-000
|
$1.00 | ||
| 10 |
Cylinder Kit
12101-120-000
|
|||
| 11 |
Adly GK-125 Cylinder Gasket
12191-120-000
|
$7.69 | ||
| 12 |
Copper Plain Washer, 6.5*12*1
94101-0612010
|
$1.34 | ||
| 13 |
Dowel Pin, 10*16
94301-10160
|
$1.26 | ||
| 14 |
Hex Washer Face Bolt, 6*12
96000-06012-10
|
$1.34 |
