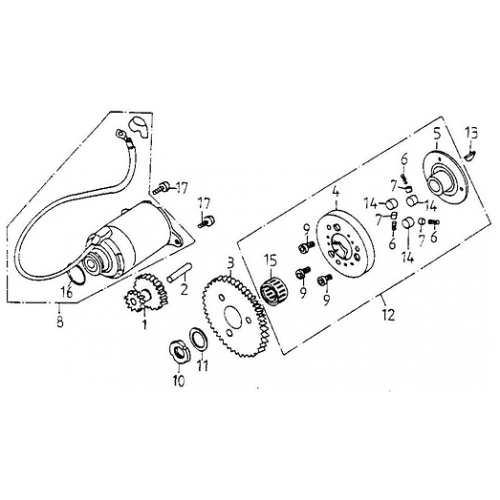

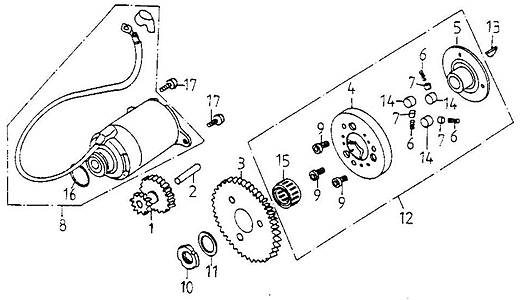

Starting Motor (Adly GK-125 2009)

Change Assembly

Sort By:

Show:

#	Product Name	Price:
1	Starter Reduction Gear 28422-120-0A0	$36.56
2	Shaft,Starter Reduction Gear 96300-100460
3	Starting Clutch Gear 28220-120-000	$36.56
4	Clutch Cover Comp 28120-120-000	$32.95
5	Starting Clutch Flange 28125-120-000	$36.56
6	Clutch Spring 28413-120-000	$0.59
7	Clutch Guider 28412-120-000	$3.35
8	Starting Motor Ass'Y 31200-120-000	$132.37
9	Hex Socket Bolt, 6*12 91000-06012B	$2.01
10	Nut Lock, 22mm 94071-22000A	$8.79
11	Plain Washer, 22312.5 94101-2231025A	$2.68
12	Starter Clutch Ass'Y 28410-120-000	$56.73
13	Semicycle Key, 25414 90471-101-000	$2.09
14	Starter Clutch Roller, 10*10 28411-120-000	$3.01
15	Needle Bearing, 283217 96200-283217	$25.37
16	Oil Ring, 24.4*3.1 91324-120-000	$3.35
17	Hex Flange Bolt 96000-06016-08C	$0.67

Showing 1 to 17 of 17 (1 Pages)
