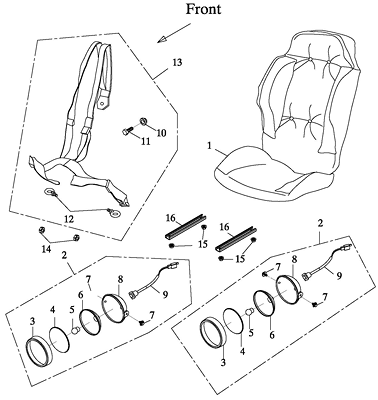

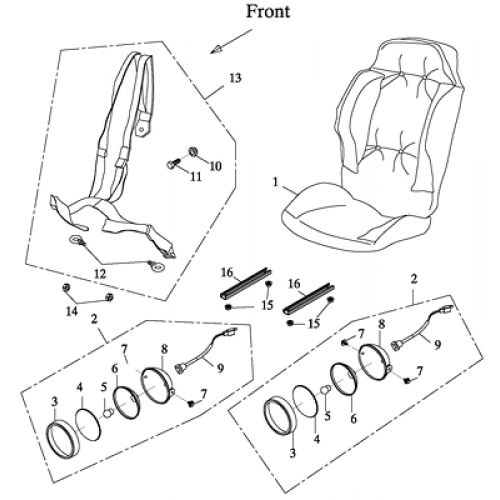

Seat, Head Light (Adly GK-125 2009)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Seat Ass'Y
77200-168-001
|
|||
| 2 |
Head Light Ass'Y(Rev.1)
33100-168-000
|
$66.53 | ||
| 3 |
Rim
33104-168-000
|
|||
| 4 |
Head Light Lens
33103-168-000
|
$36.56 | ||
| 5 |
Head Light Bulb, 12V18/18W
34901-107-000
|
$13.18 | ||
| 6 |
Head Light Reflector
33105-168-000
|
|||
| 7 |
Hex Washer Face Bolt, 6*16
92006-06016-10G
|
$2.09 | ||
| 8 |
Head Light Base
33111-168-000
|
|||
| 9 |
Head Light Wire
34801-168-000
|
$8.79 | ||
| 10 |
Spacer
77217-168-000
|
|||
| 11 |
Belt Bolt, 7/16"*25
77218-168-000
|
|||
| 12 |
Belt Bolt
77219-168-000
|
|||
| 13 |
Seat Belt Ass'Y, RSB-308-3P
77216-168-000
|
$98.56 | ||
| 14 |
elt Nut, 7/16
77222-168-000
|
$3.91 | ||
| 15 |
Hex Flange Nut With Serration, 8mm
94050-08000C
|
$0.84 | ||
| 16 |
Seat Adjustor Base
77202-168-001
|
$23.72 |
