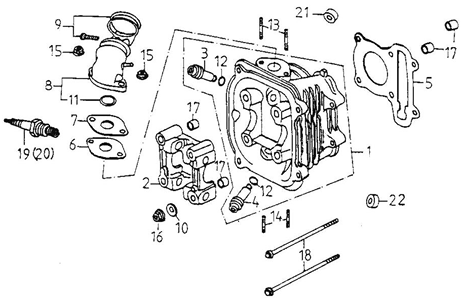

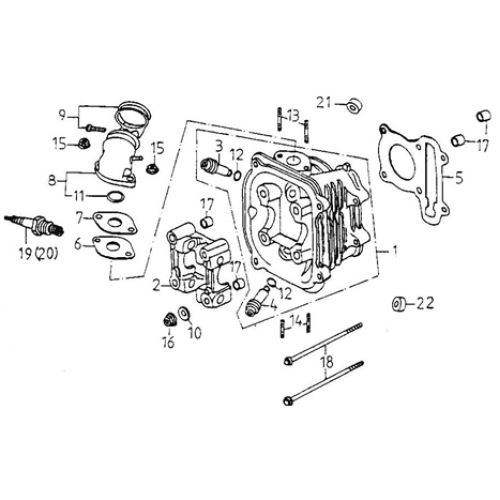

Cylinder Head (Adly GK-125 2009)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Cylinder Head
12201-120-000
|
$132.37 | ||
| 2 |
Camshaft Holder
12211-120-000
|
$21.09 | ||
| 3 |
In. Valve Guide
12204-120-000
|
$4.76 | ||
| 4 |
Ex. Valve Guide
12206-120-000
|
$4.76 | ||
| 5 |
Adly GK-125 Cylinder Head Gasket
12251-120-000
|
$12.52 | ||
| 6 |
Carburetor Insulator Gasket
16229-120-000
|
$1.26 | ||
| 7 |
Carburetor Insulator
16213-120-000
|
$4.18 | ||
| 8 |
Inake Mainfold
17100-120-000
|
$34.67 | ||
| 9 |
Intake Clamp
14111-120-000
|
$7.03 | ||
| 10 |
Plain Washer, 8*18*1.5
94101-0818015K
|
$0.67 | ||
| 11 |
Oil-Ring, 27*2
91327-120-000
|
$1.09 | ||
| 12 |
Oil-Ring, 9.5*1.6
91309-120-00A
|
$1.67 | ||
| 13 |
Stud Bolt, 6*28
91001-06028C,91001-08028c
|
$2.51 | ||
| 14 |
Stud Bolt, 6*62
91001-06062C
|
$1.42 | ||
| 15 |
Hex Flange Nut, 6mm
94050-06000C
|
$0.84 | ||
| 16 |
Hex Flange Nut With Serration, 8mm
94050-08000C
|
$0.84 | ||
| 18 |
Hex Washer Face Bolt, 6*100
96000-06100-08C
|
$3.35 | ||
| 19 |
Spark Plug, C7HSA
98076-120-000
|
$6.03 | ||
| 20 |
Anti-Resistance Spark Plug, CR7HSA
98076-120-00A
|
$6.03 | ||
| 21 |
Intake Valve Seat
12225-120-000
|
$11.72 |
