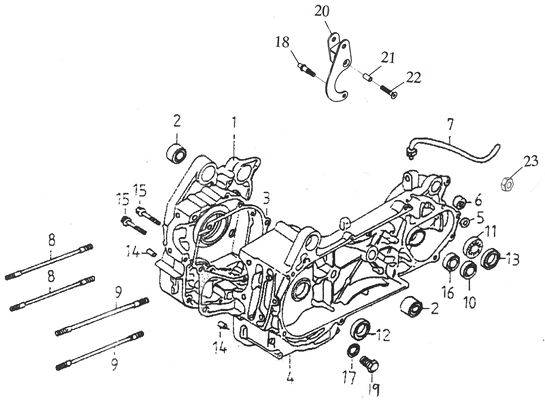

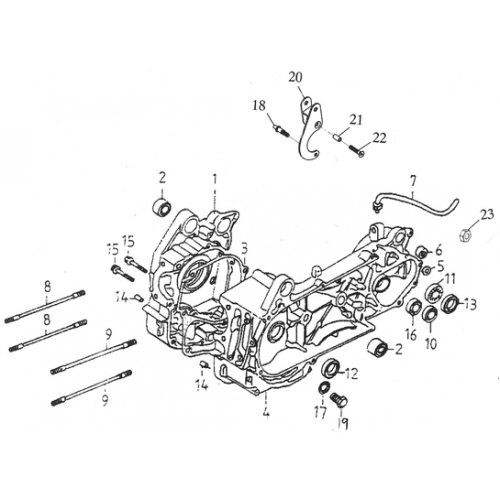

Crankcase (Adly GK-125 2009)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Right Crankcase
11101-121-001
|
|||
| 2 |
Bush, Engine Hanger Rubber, 10*28*20
96400-102820
|
$4.18 | ||
| 3 |
Crankcase Gasket
11191-120-000
|
$3.77 | ||
| 4 |
Left Crankcase
11201-121-000
|
|||
| 5 |
Plain Washer, 8*15*1.5
94101-0815015C
|
$0.50 | ||
| 7 |
Breather Tube
16615-120-000
|
$6.59 | ||
| 8 |
Stud Bolt, 8*187.5
91001-08181C
|
$7.61 | ||
| 9 |
Stud Bolt, 8*195.5
91001-08187C
|
$7.75 | ||
| 10 |
Radial Ball Bearing, TMB301
96100-TMB301
|
$32.95 | ||
| 11 |
Radial Ball Bearing, 6004LLU
96100-6004U
|
$18.45 | ||
| 12 |
Oil Seal, 19.8*30*5
96500-19305-V
|
$5.25 | ||
| 13 |
Oil Seal, 27*42*7
96500-27427
|
$2.43 | ||
| 14 |
Dowel Pin, 6.3*8*14
94301-08140
|
$1.26 | ||
| 15 |
Hex Flange Bolt, 6*50
96000-06050-08C
|
$1.00 | ||
| 16 |
Radial Ball Bearing, 6002
96100-60020
|
$13.95 | ||
| 17 |
Plain Washer, 12*21.3*2
94104-1221320
|
$2.68 | ||
| 18 |
Fix Shaft
45110-168-000
|
|||
| 19 |
Hex Flange Bolt, 12*15
96000-12015-17C
|
$3.35 | ||
| 20 |
Mounting Bracket
50353-168-000
|
|||
| 21 |
Spacer(Rev.1)
50359-168-000
|
