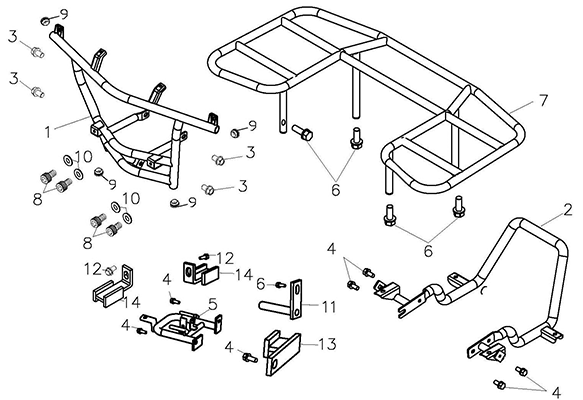

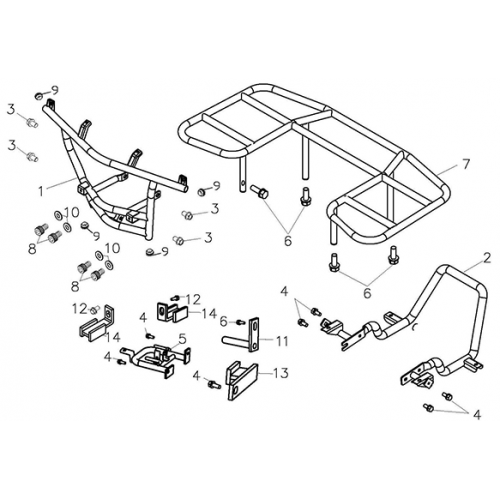

Rear Carrier (Adly ATV Q300)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Front Bumper
50104-258-000
|
|||
| 2 |
Rear Bumper
50105-258-001
|
|||
| 3 |
Hex Flange Bolt, M10*15
96000-10015-14G
|
$3.91 | ||
| 4 |
Hex Flange Bolt, M8*16
96000-08016-12G
|
$2.01 | ||
| 5 |
Exhaust Rear Bracket
18354-272-000
|
|||
| 6 |
Hex Flange Bolt, M8*20
96000-08020-12G
|
$1.34 | ||
| 7 |
Rear Carrier
81200-258-000
|
|||
| 8 |
Hex Socket Cone Bolt, 8*20
91500-08020K
|
|||
| 9 |
Floor Panel Rubber Cap
64330-145-000
|
$2.01 | ||
| 10 |
Plain Washer, 8*18*1.6
94101-0818016K
|
|||
| 11 |
Bracket
18358-272-000
|
|||
| 12 |
Hex Flange Bolt, M6*14
96000-06014-10G
|
$1.00 | ||
| 13 |
Bracket A
18356-272-000
|
|||
| 14 |
Bracket B
18357-272-000
|
