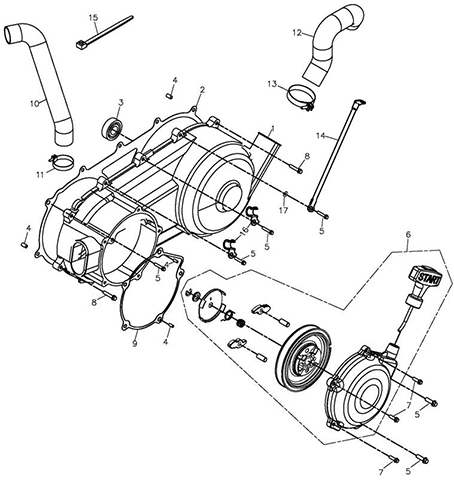

Left Crankcase Cover (Adly ATV Q300)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
L. Crank Case Cover
11341-225-000
|
$97.33 | ||
| 2 |
L Cover Gasket
11359-225-000
|
$15.82 | ||
| 3 |
Radial Ball Bearing, 6203 LLU
96100-6203LLU
|
|||
| 4 |
Dowel Pin, 6.3*8*14
94301-08140
|
$1.26 | ||
| 5 |
Hex Flange Bolt, 6*30
96000-06030-08B
|
$1.26 | ||
| 6 |
Recoil Housing Ass'Y(Rev.1)
28330-225-000
|
|||
| 7 |
Hex Flange Bolt, 6*25
96000-06025-08B
|
$2.51 | ||
| 8 |
Hex Washer Face Bolt, 6*35
96000-06035-08B
|
$1.09 | ||
| 9 |
Recoil Cover Gasket
28344-225-000
|
$8.79 | ||
| 10 |
Air Inlet
11345-261-000
|
$29.00 | ||
| 11 |
Clamp
94516-48000
|
$3.91 | ||
| 12 |
Air Outlet
11346-225-000
|
|||
| 13 |
Clamp, #55
94514-55000
|
$5.27 | ||
| 14 |
Ground Cable
32103-179-000
|
|||
| 15 |
Cable Tie, 3.6*330 m/m
90669-218-000
|
|||
| 16 |
Clamp
11351-120-00A
|
$1.59 | ||
| 17 |
Ext. Toothed Lock Washer, 6*11*0.6
94115-0611006
|
$0.84 |
