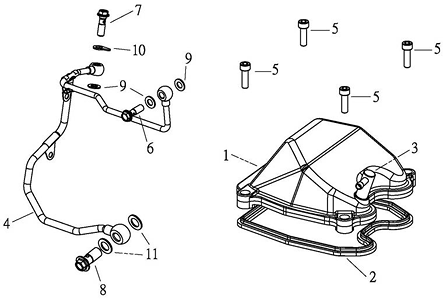

Cylinder Head Cover (Adly ATV Q300)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Cylinder Head Cover
12310-272-000
|
|||
| 2 |
Head Cover Gasket, PK-M504C
12391-272-000
|
$15.82 | ||
| 3 |
Breather Tube
11210-272-000
|
|||
| 4 |
Oil Pipe
15201-272-000
|
|||
| 5 |
Hex Socket Bolt, 6*20
91000-06020C
|
$0.67 | ||
| 6 |
Oil Bolt, 8*25.5
45456-225-000
|
$4.02 | ||
| 7 |
Oil Bolt, 8*25.5
45457-225-000
|
$4.02 | ||
| 8 |
Oil Bolt, 12*28
45458-225-000
|
$5.86 | ||
| 9 |
Copper Plain Washer, 8*15*1.2
94103-0815012,94101-0818015K
|
$0.67 | ||
| 10 |
Fix Bracket
15207-225-000
|
|||
| 11 |
Copper Plain Washer, 12.5*20*1.5
94103-1220015
|
