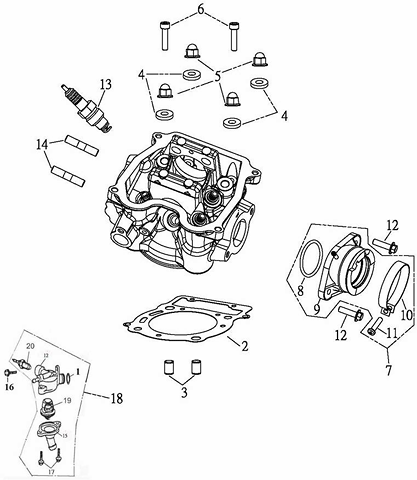

Cylinder Head (Adly ATV Q300)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Oil-Ring, 14.8*2
91314-225-000
|
|||
| 2 |
Cylinder Head Gasket
12251-272-000
|
$30.18 | ||
| 3 |
Dowel Pin, 8*10*14
94301-10140
|
$1.26 | ||
| 4 |
Plain Washer
94101-0818035B
|
$2.42 | ||
| 5 |
Hex Acorm Washer Face Nut, M8*17*12
94031-08000B
|
|||
| 6 |
Hex Socket Bolt, 6*25
91000-06025B
|
$1.00 | ||
| 7 |
Intake Manifold Ass'Y
17101-272-00A
|
$37.99 | ||
| 8 |
Oil Ring, 36*3
91336-169-000
|
$3.35 | ||
| 9 |
Intake Manifold Ass'Y
17100-272-00A
|
|||
| 10 |
Carburetor Clip
14111-169-000
|
|||
| 11 |
Pan Phillips Bolt, 5*20
93500-05020K
|
$0.59 | ||
| 12 |
Thermostat Body
19313-225-000
|
|||
| 13 |
Spark Plug, CR8E
98076-179-000
|
$5.86 | ||
| 14 |
Stud Bolt, 8*42
91001-08042B
|
$2.85 | ||
| 15 |
Thermostat Down Cover
19315-225-000
|
|||
| 16 |
Hex Socket Bolt, 6*18
91000-06018K
|
|||
| 17 |
Hex Flange Bolt, 6*16
96000-06016-08B
|
$0.67 | ||
| 18 |
Thermostat Ass'Y
19310-225-000
|
$85.01 | ||
| 19 |
Thermostat With Gasket
19310-179-000
|
$67.76 | ||
| 20 |
Sensor
19312-225-000
|
$20.52 |
