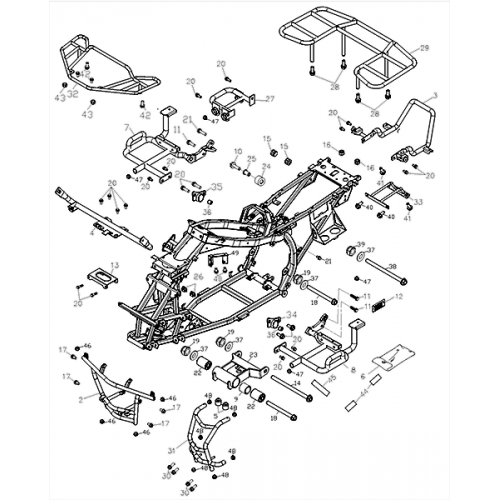

Frame Body (Adly ATV Q280)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Frame Comp
50100-225-001
|
|||
| 2 |
Front Bumper
50104-258-000
|
|||
| 3 |
Rear Bumper
50105-258-001
|
|||
| 4 |
Front Cover Fixed Pole
64309-258-000
|
|||
| 5 |
Rubber Damper
95011-101-000
|
$1.47 | ||
| 6 |
Tool Bag
50120-256-000
|
|||
| 7 |
R.Step Bar Comp
50717-258-000
|
|||
| 8 |
L.Step Bar Comp
50718-258-000
|
|||
| 9 |
Space Tube, 10.2*27*10
96403-1027010
|
|||
| 10 |
Hex Washer Face Bolt, 8*40
96000-08040-12K
|
$1.59 | ||
| 11 |
Hex Flange Bolt, M10*35
96000-10035-14G
|
$4.02 | ||
| 12 |
I.D Plate, 80*35
50110-101-001
|
|||
| 13 |
Socket Of Radiator
50114-225-000
|
|||
| 14 |
Hex Washer Face Bolt, 10*135
96000-10135-14G
|
$8.93 | ||
| 15 |
Rubber
77212-169-000
|
$4.02 | ||
| 16 |
Rubber
77211-145-000
|
$2.68 | ||
| 17 |
Hex Flange Bolt, M10*15
96000-10015-14G
|
$3.91 | ||
| 18 |
Hex Washer Face Bolt, M10*110
96000-10110-14Z
|
$8.42 | ||
| 19 |
Hex Flange Nut With Serrat, M10
94050-10000G
|
$1.04 | ||
| 20 |
Hex Flange Bolt, M8*16
96000-08016-12G
|
$2.01 |
