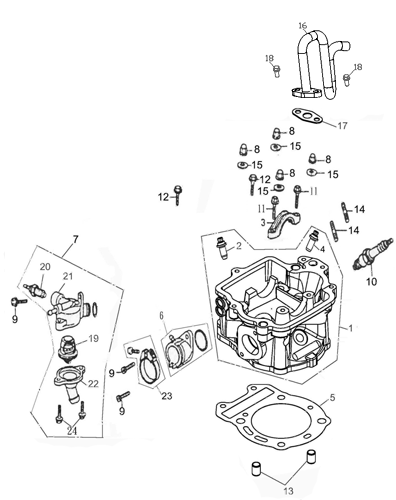

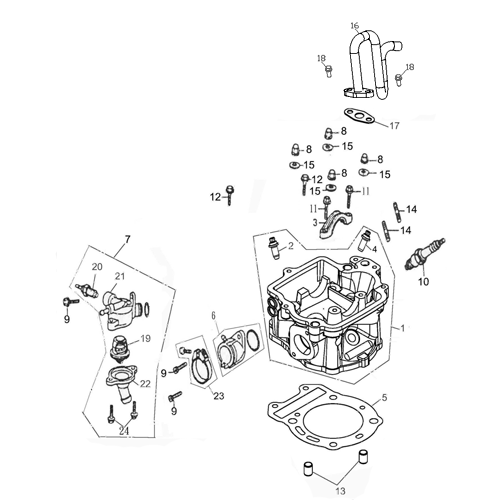

Cylinder Head (Adly ATV Q280)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Cylinder Head, 14.8*2
12201-225-000
|
|||
| 2 |
In. Valve Guide
12204-225-000
|
|||
| 3 |
Camshaft Holder, 8*10*14
12211-225-000
|
|||
| 4 |
Ex. Valve Guide
12206-225-000
|
|||
| 5 |
Cylinder Head Gasket, M8*17*12
12251-225-000
|
$25.04 | ||
| 6 |
Intake Manifold Ass'Y, 6*25
17100-225-000
|
|||
| 7 |
Thermostat Ass'Y
19310-225-000
|
$85.01 | ||
| 8 |
Hex Acorm Washer Face Nut, M8*17*12
94031-08000B
|
|||
| 9 |
Hex Socket Bolt, 6*18
91000-06018K
|
|||
| 10 |
Spark Plug, NGK(DPR7EA
98076-225-000
|
$5.86 | ||
| 11 |
Hex Flange Bolt, 6*22
96000-06022-08B
|
$1.00 | ||
| 12 |
Hex Socket Bolt, 6*25
91000-06025B
|
$1.00 | ||
| 13 |
Dowel Pin, 8*10*14
94301-10140
|
$1.26 | ||
| 14 |
Stud Bolt, 8*39
91001-08039B
|
|||
| 15 |
Plain Washer
94101-0818035B
|
$2.42 | ||
| 16 |
A.I.S Pipe, 6*18
17413-225-001
|
|||
| 17 |
A.I.S Pipe Gasket, 6*16
17414-225-000
|
|||
| 18 |
Hex Flange Bolt, 6*16
96000-06016-08B
|
$0.67 | ||
| 19 |
Thermostat With Gasket
19310-179-000
|
$67.76 | ||
| 20 |
Sensor
19312-225-000
|
$20.52 |
