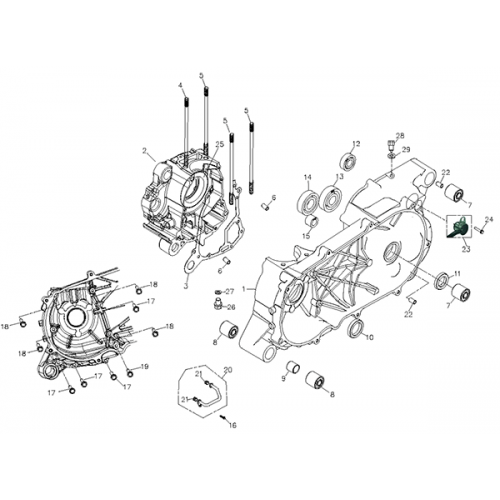

Crankcase (Adly ATV Q280)
Change Assembly
# | Product Name | Req'd | Price: | |
---|---|---|---|---|
1 |
L.Crank Case
11201-225-000
|
|||
2 |
Right Crankcase
11101-225-000
|
|||
3 |
Crankcase Gasket
11191-225-000
|
$11.77 | ||
4 |
Stud Bolt, 8*195.5
91001-08187C
|
$7.75 | ||
5 |
Stud Bolt, 8*179
91001-08179C
|
$8.33 | ||
6 |
Dowel Pin, 6.3*8*14
94301-08140
|
$1.26 | ||
7 |
Rubber Bushing, 10*28*29
96400-102829
|
$4.50 | ||
8 |
Bush, 10*26*32
96400-102632
|
|||
9 |
Bushing, 10*19*46.9
96401-101946
|
|||
10 |
Oil Seal, TC28407
96500-28407
|
$12.06 | ||
11 |
Oil Seal, 22*36*6
96500-22366
|
$4.02 | ||
12 |
Radial Ball Bearing, 6202
96100-62020
|
$10.46 | ||
13 |
Radial Ball Bearing, 6304
96100-63040
|
$17.43 | ||
14 |
Radial Ball Bearing, TMB2/22CCS15
96100-TMB222
|
$36.56 | ||
15 |
Needle Bearing, NK142216
96200-NK142216
|
$28.98 | ||
16 |
Hex Flange Bolt, 6*12
96000-06012-08B
|
$0.67 | ||
17 |
Hex Flange Bolt, 6*65
96000-06065-10B
|
$2.09 | ||
18 |
Hex Washer Face Bolt, 6*75
96000-06075-10B
|
|||
19 |
Hex Washer Face Bolt, 6*52
96000-06052-10B
|
|||
20 |
Oil Pipe Comp.
15101-225-000
|
