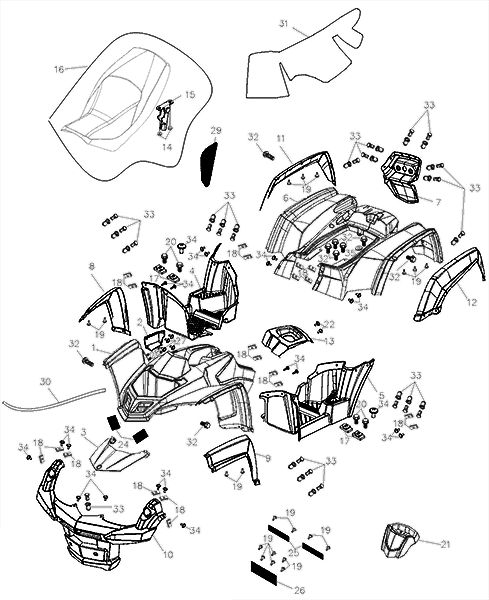

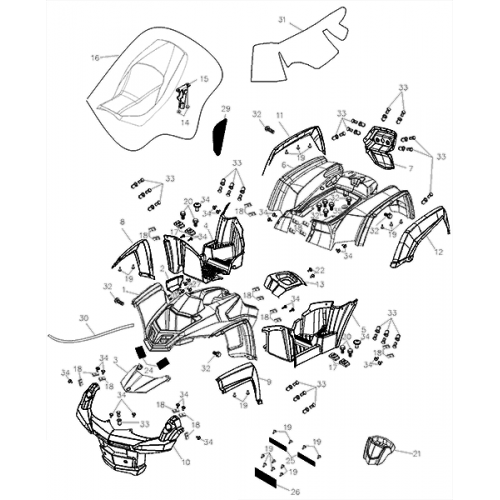

Body Cover / Seat (Adly ATV Q280)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Front Cover
64301-258-000
|
|||
| 2 |
Cover
64340-258-000
|
|||
| 3 |
Front Luggage Box Cover
64339-258-000
|
|||
| 4 |
R. Floor Panel
64312-258-000
|
|||
| 5 |
L. Floor Panel
64313-258-000
|
|||
| 6 |
Rear Cover
83400-258-000
|
|||
| 7 |
Tail Light Base
80118-258-000
|
|||
| 8 |
Right Front Cover
64303-258-000
|
|||
| 9 |
F.Front Visor
64223-258-000
|
|||
| 10 |
Bumper Cover
50107-258-000
|
|||
| 11 |
Rear Right Body Cover
83500-258-000
|
|||
| 12 |
Rear Left Side Cover
83600-258-000
|
|||
| 13 |
Dash Board
64501-258-000
|
|||
| 14 |
Nylon Nut, M6
90350-06000G
|
$0.84 | ||
| 15 |
Seat Latch
77201-169-000
|
$13.18 | ||
| 16 |
Seat Ass'Y
77200-258-000
|
|||
| 17 |
Rubber Stopper
64334-179-000
|
|||
| 18 |
U Plate Nut, 6mm
90344-0600A
|
$2.68 | ||
| 19 |
Tapping Screw Truss Head Phillips, 5*12
93903-05012K
|
$0.59 | ||
| 20 |
Hex Washer Face Bolt, 6*25
96000-06025-10K
|
$1.00 |
