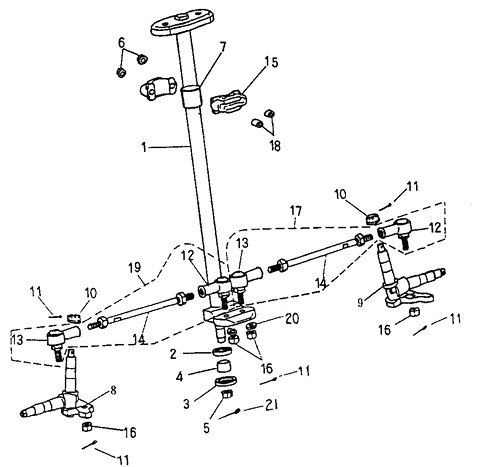

Steering (Adly ATV 90Z2 4T (Gear Drive))
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Steering Shaft Ass'y (Rev.4)
51109-155-000
|
$49.17 | ||
| 2 |
Oil Seal, 18*32*7
96500-18327
|
$2.51 | ||
| 3 |
Oil Seal, 22*35*7
96500-22357
|
|||
| 4 |
Spacer Tube, 15*22*15
44620-145-000
|
$6.03 | ||
| 5 |
Nylon Nut, M14
90350-14000G
|
$2.59 | ||
| 6 |
Hex Flange Nut With Serration, 8mm
94050-08000C
|
$0.84 | ||
| 7 |
Pu Bushing
51114-145-000
|
|||
| 8 |
Left Knuckle(Rev.3)
44510-145-000
|
$84.99 | ||
| 9 |
Right Knuckle(Rev.3)
44520-145-000
|
$84.65 | ||
| 10 |
Scotch Flange Nut, 10mm
94052-10000-14C
|
$4.18 | ||
| 11 |
Cotter Pin, 2*19
94201-20190B
|
$0.42 | ||
| 12 |
Ball Joint,Left Thread, ECO
44511-145-002
|
|||
| 13 |
Ball Joint,Right Thread, ECO
44521-145-002
|
|||
| 14 |
Stud Bolt, 10*200
91001-10200
|
$13.64 | ||
| 15 |
Steering Shaft Holder
51113-145-00A
|
$7.99 | ||
| 16 |
Nylon Nut, M10*P1.25
90350-10000G
|
$0.67 | ||
| 17 |
Adly ATV 50/90 Right Link Ass'y
44500-145-002
|
$69.33 | ||
| 18 |
Holder Spacer Coller
51115-145-000
|
$3.35 | ||
| 19 |
Adly ATV Front Left Link Ass'y
44501-145-002
|
$69.33 | ||
| 20 |
Plain Washer, 10*22*2.5
94105-1022025G
|
$2.09 |
