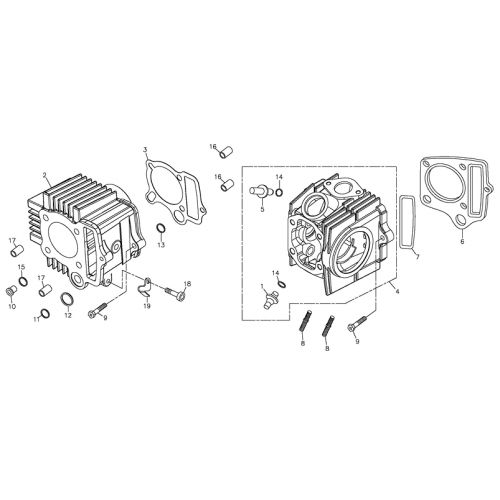

Cylinder, Cylinder Head (Adly ATV 90Z2 4T (Gear Drive))
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Ex. Valve Guide
12206-152-000
|
$3.77 | ||
| 2 |
Cylinder Comp
12101-152-000
|
$97.33 | ||
| 3 |
Cylinder Gasket
12191-152-000
|
$6.22 | ||
| 4 |
Cylinder Head Comp
12201-152-000
|
$132.37 | ||
| 5 |
In. Valve Guide
12204-152-000
|
$2.85 | ||
| 6 |
Cylinder Head Gasket
12251-152-000
|
|||
| 7 |
Cam Chain Chamber Seal
12255-152-000
|
$7.32 | ||
| 8 |
Stud Bolt, 6*32
91001-06032C
|
$3.35 | ||
| 9 |
Hex Socket Bolt, 6*23
91000-06023C
|
$1.67 | ||
| 10 |
Collar, 6*8*10
96401-060810
|
$3.35 | ||
| 11 |
Collar, 11.5*14.8*1.6
96401-1114016
|
$5.86 | ||
| 12 |
Rubber Gasket, 16*19*2.0
94102-1619020
|
$1.34 | ||
| 13 |
Oil-Ring, 14.8*18.8*2.5
91314-152-000
|
$2.09 | ||
| 14 |
Oil-Ring, 9.5*1.6
91309-120-00A
|
$1.67 | ||
| 15 |
Rubber Gasket, 9*12*1.5
94102-0912015
|
$3.35 | ||
| 16 |
Dowel Pin, 8*12
94301-08120
|
$1.34 | ||
| 17 |
Dowel Pin, 6.3*8*14
94301-08140
|
$1.26 | ||
| 18 |
Hex Socket Bolt, 6*10
91000-06010B
|
$0.72 |
