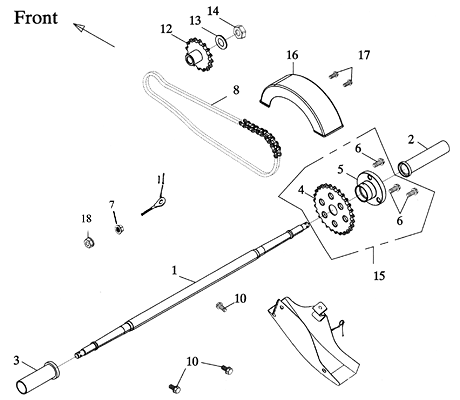

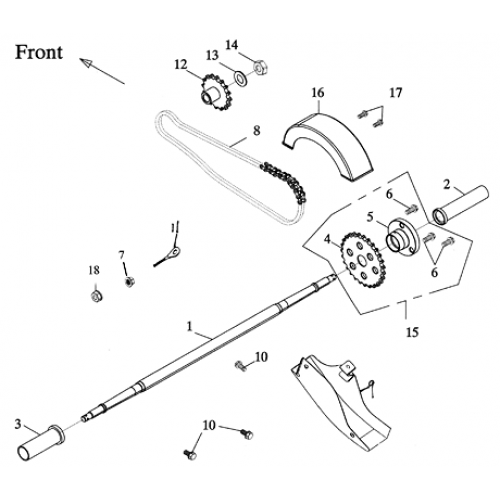

Rear Wheel Axle, Chain (Adly ATV 90cc 2T)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Rear Wheel Axle, 711mm
42301-145-000
|
$159.11 | ||
| 2 |
Right Spacer Collar
42620-145-001
|
$15.82 | ||
| 3 |
Left Spacer Collar
42622-145-001
|
$14.83 | ||
| 4 |
Rear Sprocket, 40T
41201-146-000
|
|||
| 5 |
Final Drive Flange(Rev.1
42610-145-000
|
$25.04 | ||
| 6 |
Hex Flange Bolt, M8*20
96000-08020-12G
|
$1.34 | ||
| 7 |
Hex Nut, 8mm
94001-08000C
|
$0.84 | ||
| 8 |
Drive Chain, 428*82
40530-146-000
|
$38.84 | ||
| 9 |
Chain Protect Cover
40510-145-001
|
$36.56 | ||
| 10 |
Hex Washer Face Bolt, 8*12
96000-08012-12G
|
$1.00 | ||
| 11 |
Drive Chain Adjuster, 8MM
40543-145-001
|
$6.69 | ||
| 12 |
Drive Sprocket Ass'Y, 428-19T
23801-145-000
|
$37.99 | ||
| 13 |
Plain Washer, 15*29*3
94105-1529030G
|
$2.85 | ||
| 14 |
Nylon Nut, M14
90350-14000G
|
$2.59 | ||
| 15 |
Rear Sprocket Ass'Y, 40T
42600-146-000
|
|||
| 16 |
Rear Chain Cover
40511-152-000
|
|||
| 17 |
Hex Washer Face Bolt, 6*12
96000-06012-10G
|
$1.34 | ||
| 18 |
Nut, 8mm
94053-08000G
|
$2.09 |
