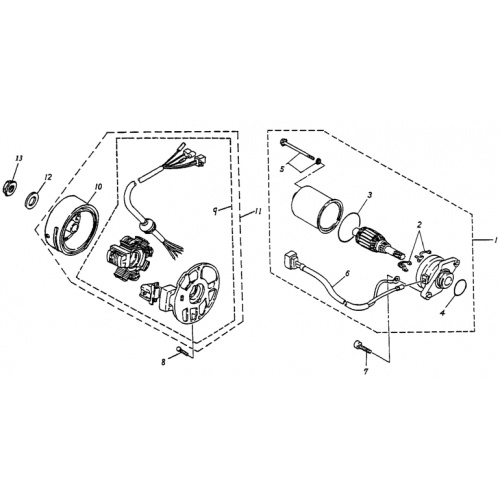

Generator, Starting Motor (Adly ATV 90cc 2T)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Starting Motor Ass'Y
31200-116-000
|
|||
| 2 |
Brush Set
31201-116-000
|
$11.86 | ||
| 3 |
Oil Ring, 42*1.5
91342-104-000
|
$2.68 | ||
| 4 |
Oil Ring, 23*2
91323-104-000
|
$3.35 | ||
| 5 |
Bolt Set
90115-104-000
|
$2.09 | ||
| 6 |
Cord Comp.
31202-116-000
|
$25.04 | ||
| 7 |
Hex Socket Bolt, 6*20
91000-06020B
|
$0.67 | ||
| 8 |
Hex Socket Bolt, 6*15
91000-06015B
|
$1.14 | ||
| 9 |
Stator Comp.
31120-116-000
|
|||
| 10 |
Generator Flywheel
31110-116-000
|
|||
| 11 |
Generator Ass'Y
31100-116-000
|
|||
| 12 |
Plain Washer, 10*22*1.5
94101-1022020
|
$0.75 | ||
| 13 |
Hex Flange Nut With Serration, 10mm
94050-10000
|
$1.67 |
