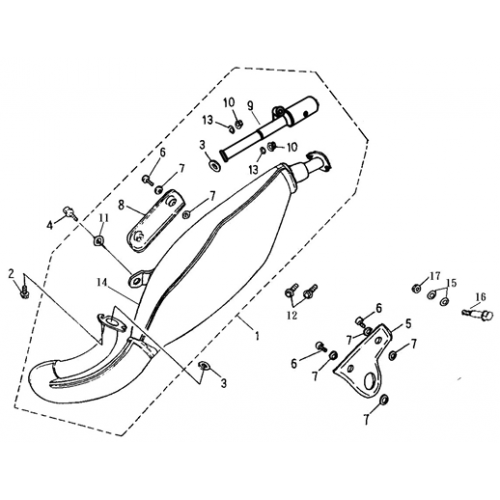

Exhaust (Adly ATV 90cc 2T)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Exhaust Pipe Ass'Y
18300-146-000
|
|||
| 2 |
Hex Head Phillips Bolt, 6*18
92001-06018-10B
|
$1.51 | ||
| 3 |
Exhaust Pipe Gasket
18291-101-000
|
$4.49 | ||
| 4 |
Hex Flange Bolt, M8*20
96000-08020-12G
|
$1.34 | ||
| 5 |
Insolator
18301-145-000
|
$10.98 | ||
| 6 |
Hex Flange Bolt, 6*12
96000-06012-08B
|
$0.67 | ||
| 7 |
Muffler Shroud Gasket, 6mm
18292-104-000
|
|||
| 8 |
Muffler Shroud
18318-145-000
|
$12.19 | ||
| 9 |
Silencer Muffler
18321-145-001
|
|||
| 10 |
Hex Flange Nut With Serration, M6
94050-06000G
|
$0.84 | ||
| 11 |
Spring Washer, 8*14.5*2
94111-0814520
|
$0.50 | ||
| 12 |
Hex Washer Face Bolt, 6*25
96000-06025-10K
|
|||
| 13 |
Plain Washer, 6*14*2
94101-0614020
|
$0.59 | ||
| 14 |
Adly ATV Front Exhaust Pipe
18311-146-000
|
|||
| 15 |
Plain Washer, 10*22*2.5
94105-1022025G
|
$2.09 | ||
| 16 |
Hex Washer Face Bolt, 10*48
96000-10048-14K
|
$4.18 | ||
| 17 |
Nylon Nut, M10*P1.25
90350-10000G
|
$0.67 |
