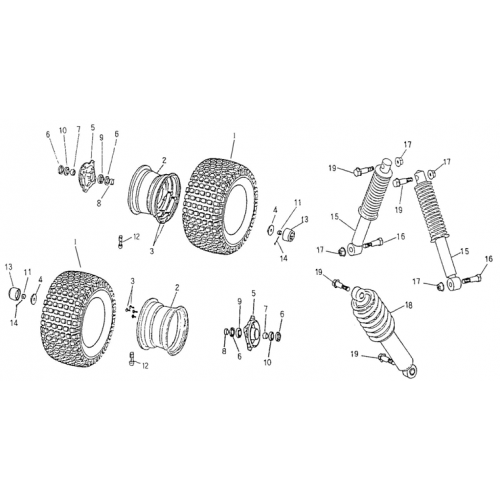

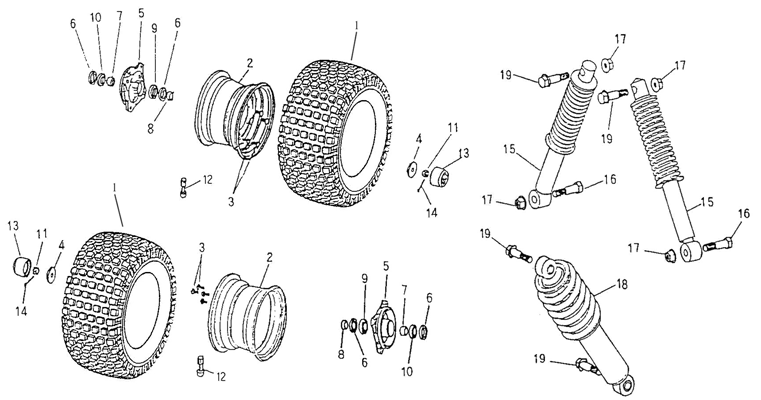

Front Wheel, Suspension (Adly ATV 50cc 2T)

Change Assembly

Sort By:

Show:

#	Product Name	Price:
1	Tire 16x8-7 42711-145-0A0
2	Adly Rim Assembly, 7*5.2 (REV.2) 42701-145-000
3	Hex Washer Face Bolt, 10*20 96000-10020-14B	$3.01
4	Plain Washer, 12404.5 94101-1240045C	$2.34
5	Front Brake Drum(Rev.3) 42710-145-000	$69.99
6	Oil Seal, 22357 96500-22357
7	Spacer Tube, 152215 44620-145-000	$6.03
8	Front Coller(Rev.1), 152210 44311-145-000	$6.15
9	Radial Ball Bearing, 6002Z 96100-6002Z	$11.98
10	Radial Ball Bearing, 6003Z 96100-6003Z	$11.75
11	Hex,Slotted Nut, 12mm 94051-12000-17C	$3.77
12	Air Nozzle 42616-145-000	$4.18
13	Rubber Cover, ADLY 42814-145-000
14	Cotter Pin, 2*19 94201-20190B	$0.42
15	Front Cushion(Rev.1) 51400-145-000	$60.40
16	Hex Bolt, 10*40 92000-10040-14G	$1.92
17	Nylon Nut, M10*P1.25 90350-10000G	$0.67
18	Rear Cushion(Rev.1) 52400-145-000	$73.00
19	Hex Flange Bolt, M10*40 96000-10040-14G	$4.02

Showing 1 to 19 of 19 (1 Pages)
