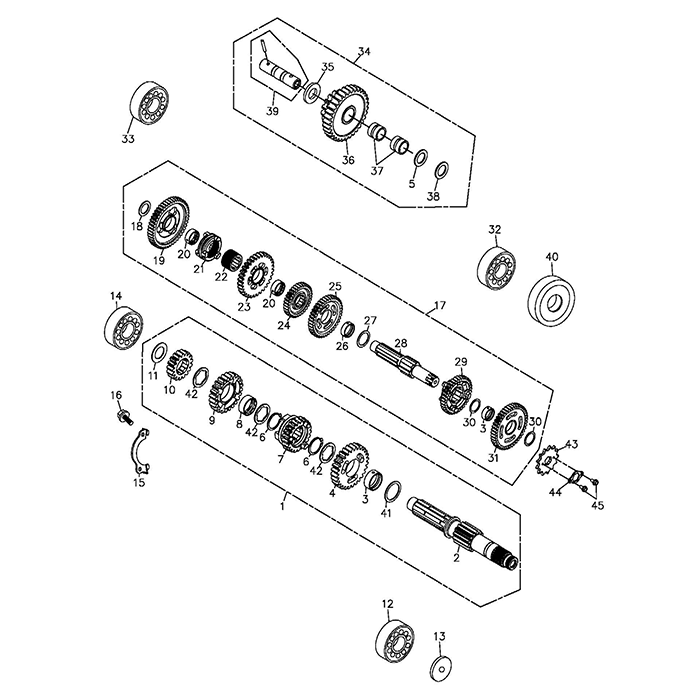

Transmission
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Main Shaft Ass'Y
23212-169-001
|
$165.80 | ||
| 2 |
Main Shaft, 13T
23211-169-000
|
$85.01 | ||
| 3 |
Bush, 22*25*10
91004-169-000
|
$12.19 | ||
| 4 |
M-5 Gear, 28T
23501-169-000
|
$32.95 | ||
| 5 |
Wave Washer, 15*20*0.3
94112-1520003
|
$0.67 | ||
| 6 |
Circlip, GTW-22
94511-2200G
|
|||
| 7 |
M-3 Gear, 21T
23461-169-000
|
$32.95 | ||
| 8 |
Spline Bush, 22*25*9.5
91008-169-000
|
|||
| 9 |
M-4 Gear, 24T
23481-169-000
|
$32.95 | ||
| 10 |
M-2 Gear, 17T
23441-169-000
|
$21.09 | ||
| 11 |
Thrust Washer, 17*28*1.2
90452-169-001
|
$2.01 | ||
| 12 |
Radial Ball Bearing, TMB203AJR2C3/2A
96100-TMB203A
|
$37.82 | ||
| 13 |
Oil Guide
11103-169-000
|
$3.35 | ||
| 14 |
Radial Ball Bearing, TMB2/22CCS15
96100-TMB222
|
$36.56 | ||
| 15 |
Bearing Setting Plate
94601-169-000
|
$20.10 | ||
| 16 |
Hex Socket Bolt, 6*16
91000-06016K
|
$1.00 | ||
| 17 |
Counter Shaft Ass'Y
23222-169-001
|
$260.73 | ||
| 18 |
Thrust Washer, 20*30*2
90451-2030020
|
$2.43 | ||
| 19 |
C-1 Gear Comp, 48T
23421-169-000
|
$37.82 | ||
| 20 |
Reverse Gear Bush
91006-169-000
|
$23.72 |
