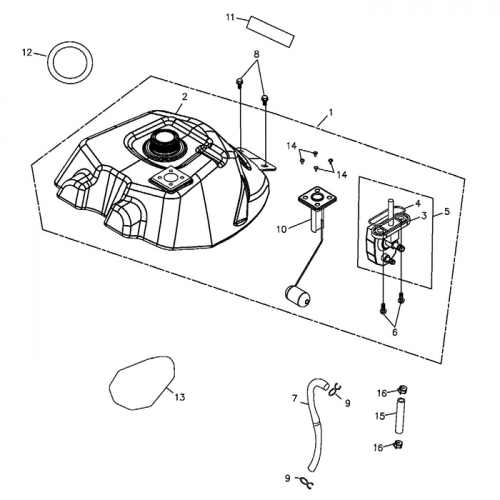

Fuel Tank
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Fuel Tank Ass'Y
17511-225-001
|
$159.11 | ||
| 2 |
FUEL TANK COMP
17500-225-001
|
|||
| 3 |
Fuel Cap Body
16953-225-000
|
|||
| 4 |
Fuel Cup Ring
16951-169-000
|
$3.35 | ||
| 5 |
Fuel Valve
16950-225-000
|
$32.95 | ||
| 6 |
Hex Washer Face Bolt, 6*12
96000-06012-08G
|
$0.67 | ||
| 7 |
Fuel Tube, 5.3*10.5*210
94400-0510210
|
$7.32 | ||
| 8 |
Hex Washer Face Bolt, 6*14
92006-06014-10G
|
$2.09 | ||
| 9 |
Spring Clamp
94513-09000
|
$1.26 | ||
| 10 |
Petrol Gauge Ass'Y
37800-225-000
|
$32.95 | ||
| 11 |
Sponge Pad, 30*4*140
94701-3004140
|
|||
| 12 |
FRONT COVER RUBBER GASKET
17504-272-000
|
|||
| 13 |
Isolation Pad
55101-169-000
|
$14.76 | ||
| 14 |
Round Phillips Bolt, 5*12
93000-05012C
|
$0.33 | ||
| 15 |
Tube, 4.8*8*120
94400-0408120
|
$2.76 | ||
| 16 |
Spring Clamp
94513-08000
|
$1.26 |
