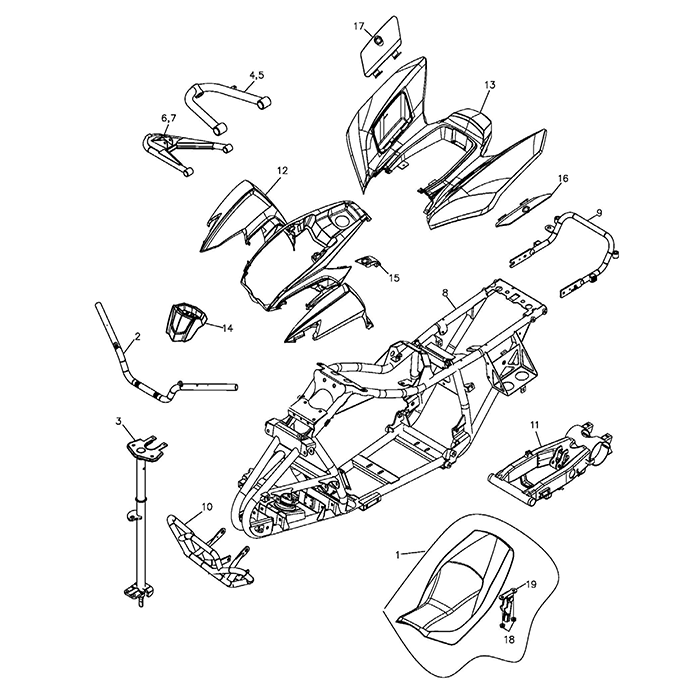

Accessory
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
SEAT ASSY
77200-225-00B
|
|||
| 2 |
Handle Bar
53100-223-000BK
|
$36.56 | ||
| 3 |
STEERING SHAFT ASSY
51109-901-001BK
|
|||
| 4 |
R. UPPER SUSPENSION ARM(BLACK)
51200-901-002BK
|
|||
| 5 |
L. UPPER SUSPENSION ARM(BLACK)
51300-901-002BK
|
|||
| 6 |
R. LOWER SUSPENSION ARM(BLACK)
51600-901-001BK
|
|||
| 7 |
L. LOWER SUSPENSION ARM(BLACK)
51500-901-001BK
|
|||
| 8 |
FRAME COMP
50100-410-000BK
|
|||
| 9 |
REAR BUMPER(BLACK)
50105-225-001BK
|
|||
| 10 |
FRONT BUMPER(BLACK)
50104-225-00ABK
|
|||
| 11 |
SWING ARM SUB ASS Y(BLACK)
52100-169-001BK
|
|||
| 12 |
FRONT COVER(WHITE)
64301-903-000WH
|
|||
| 13 |
REAR COVER(WHITE)
83400-501-002WH
|
|||
| 14 |
SPEEDOMETER COVER(WHITE )
64211-225-000WH
|
|||
| 15 |
FRONT LUGGAGE BOX COVER(WHITE)
64339-225-000WH
|
|||
| 16 |
L. REAR LUGGAGE BOX COVER(WHITE
83417-225-000WH
|
|||
| 17 |
R. REAR LUGGAGE BOX COVER(WHITE
83418-225-000WH
|
|||
| 18 |
Nylon Nut, M6
90350-06000G
|
$0.84 | ||
| 19 |
Seat Latch
77201-169-000
|
$13.18 |
