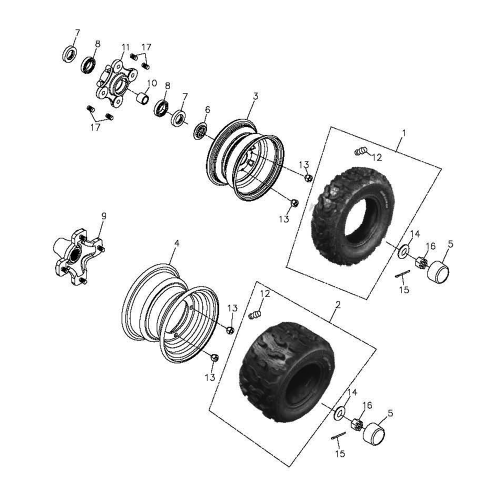

Wheel Front and Rear
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
FRONT TIRE
42711-303-000
|
|||
| 2 |
REAR TIRE
42811-303-000
|
|||
| 3 |
FRONT RIM
42701-258-001BK
|
|||
| 4 |
REAR RIM
42801-258-001BK
|
|||
| 5 |
Rubber Cover, ADLY
42814-145-000
|
|||
| 6 |
Collar
42707-169-000
|
$25.04 | ||
| 7 |
Oil Seal, 29.3*43.6*4.5
96500-29435
|
$3.61 | ||
| 8 |
Radial Ball Bearing, 6004ZZCM/2A-T0
96100-6004ZZ
|
$16.99 | ||
| 9 |
REAR SHAFT HUB(RD)
42037-256-000RD
|
|||
| 10 |
Coller
42705-169-000
|
$7.32 | ||
| 11 |
FRONT WHEEL HUB(RD)
42036-169-000RD
|
|||
| 12 |
Air Nozzle
42616-145-000
|
$4.18 | ||
| 13 |
Wheel Nut, M10*18
94001-10018B
|
|||
| 14 |
Plane Washer, 18*40*4.5
94101-1840045C
|
$4.18 | ||
| 15 |
Cotter Pin, 3*45
94201-30450B
|
$0.50 | ||
| 16 |
Scotch Nut, M18
94051-18000B
|
$5.86 | ||
| 17 |
Hub Stud Bolt, 10*35
96005-10035C
|
$3.91 |
