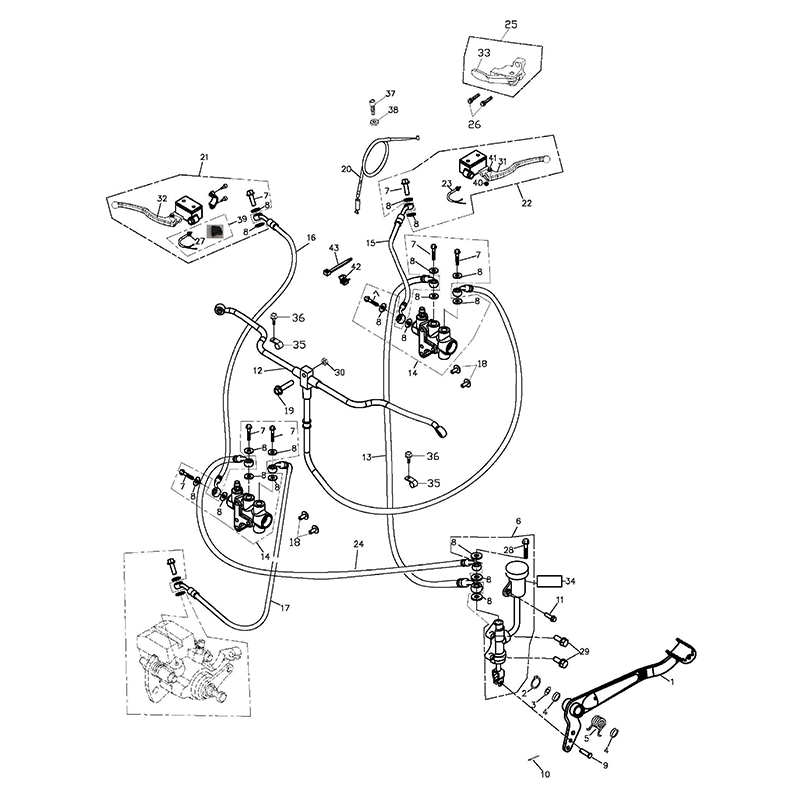

Brake System
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Brake Pedal Comp
46500-197-001
|
$44.12 | ||
| 2 |
External Circlip, STW-17
94511-1700S
|
$1.26 | ||
| 3 |
Plain Washer, 17.6*31*2.3
94101-1731023B
|
$4.18 | ||
| 4 |
Oil Ring, 16.7*3.2
91316-169-000
|
$1.14 | ||
| 5 |
Return Spring
46501-169-000
|
$5.86 | ||
| 6 |
REAR BRAKE CYLINDER SUB ASS'Y
43500-256-00B
|
|||
| 7 |
Brake Hose Fix Bolt, 10*22
45456-107-000
|
$2.43 | ||
| 8 |
Copper Plain Washer, 10*15*1.2
94103-1015012
|
$2.05 | ||
| 9 |
Pin, 7mm
45521-168-000
|
$1.42 | ||
| 10 |
Lock Pin, 8mm
94251-912-000
|
$0.75 | ||
| 11 |
Hex Flange Bolt, 6*16
96000-06016-10G
|
$0.67 | ||
| 12 |
FRONT BRAKE HOSE ASS'Y
45450-302-000
|
|||
| 13 |
OIL TUBE(FRONT)
43460-225-000
|
|||
| 14 |
BRAKE SHUNT ASS'Y
45502-256-000
|
|||
| 15 |
R. BRAKE HOSE
45550-256-000
|
|||
| 16 |
L. BRAKE HOSE
45560-225-000
|
|||
| 17 |
Brake Hose Of Rear Caliper
45570-256-000
|
$60.37 | ||
| 18 |
Hex Flange Bolt, 6*35
96000-06035-10B
|
$3.35 | ||
| 19 |
Hex Washer Face Bolt, M6*25
96000-06025-10C
|
$0.94 | ||
| 20 |
Parking Brake Cable, L=1650
43482-256-001
|
