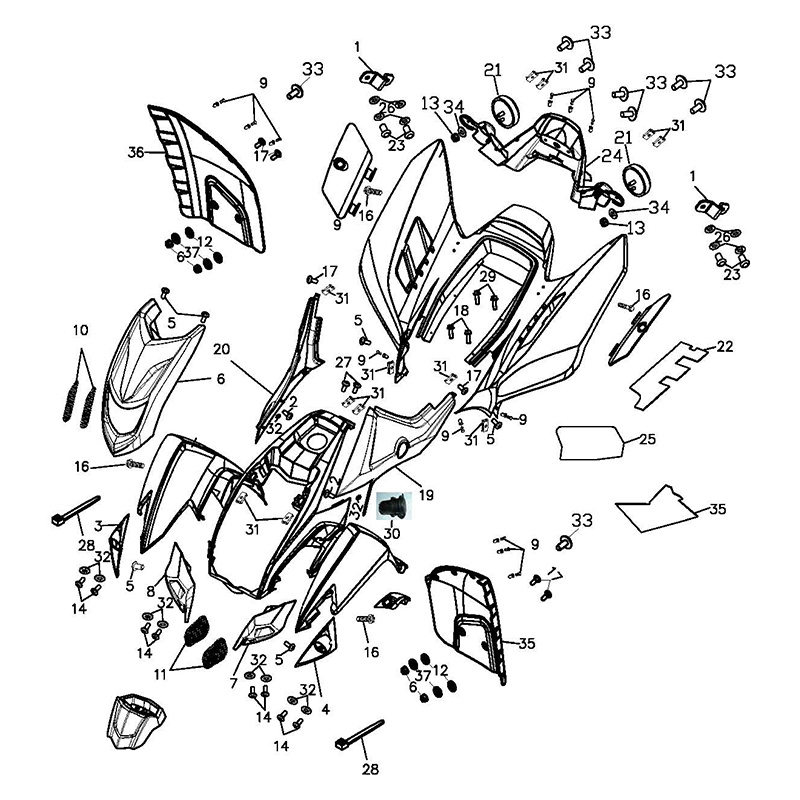

Body Cover | Seat
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Inner Box Lid Bracket
81144-225-000
|
|||
| 2 |
Tapping Screw Truss Head Phillips, 4*12
93903-04012K
|
$0.25 | ||
| 3 |
Left Signal Light Cover
64325-225-000
|
|||
| 4 |
Right Signal Light Cover
64326-225-000
|
|||
| 5 |
Pan Flat Head Phillips Bolt, 6*15
93701-06015G
|
$2.09 | ||
| 6 |
Front Fascia
64321-225-000
|
|||
| 7 |
Left Airing Cover
64305-225-000
|
|||
| 8 |
Right Airing Cover
64304-225-000
|
|||
| 9 |
Plastic Bolt
90663-179-000
|
$2.59 | ||
| 10 |
Screen Net
64353-225-000
|
|||
| 11 |
Screen Net
64352-225-000
|
|||
| 12 |
Rubber Washer
94102-145-000
|
$4.18 | ||
| 13 |
Nylon Nut, M6
90350-06000G
|
$0.84 | ||
| 14 |
Tapping Screw Truss Head Phillips, 4*16
93903-04016K
|
$0.25 | ||
| 15 |
Side Cover Isolation Gasket, 0.1+3MM/20
64345-225-000
|
|||
| 16 |
Hex Washer Face Bolt, 6*18
92006-06018-10K
|
|||
| 17 |
Pan Phillips Bolt, 6*15
93800-06015S
|
$3.35 | ||
| 18 |
Shaft Drum Stopper Arm Pivot, 6*14
90111-06014-16G
|
$2.09 | ||
| 19 |
Left Side Cover
83600-225-000
|
|||
| 20 |
Right Body Cover
83500-225-000
|
