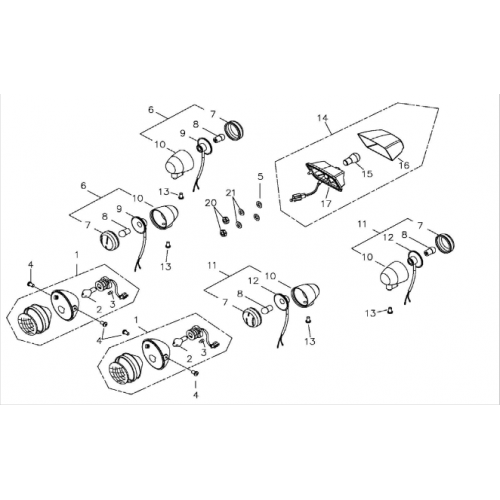

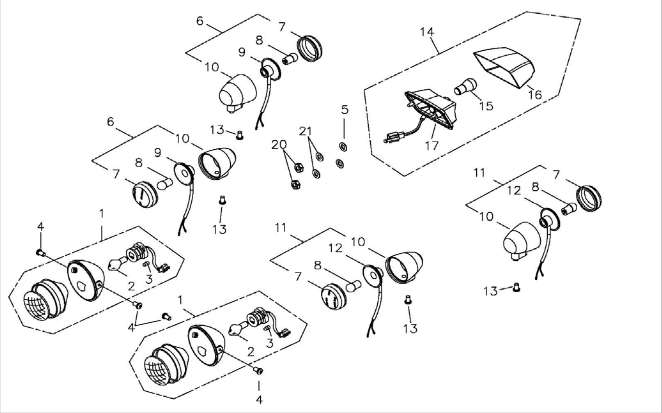

Head/Tail Light (Adly ATV 300S II CrossXRoad)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Head Lamp
33100-169-000
|
$66.53 | ||
| 2 |
Head Light Bulb , 12V35W
34901-169-000
|
$15.82 | ||
| 3 |
Position Lamp , 12V5W
34909-169-000
|
$8.79 | ||
| 4 |
Pan Flat Head Phillips Bolt, 5*12mm
93701-05015
|
$0.67 | ||
| 5 |
Plain Washer, 6*13*1
94101-0613010
|
$0.50 | ||
| 5 |
Plain Washer, 6*13*1
94101-0613010B
|
$0.50 | ||
| 6 |
R.Signal Ass'Y (E-Mark), 21W
33400-226-00A
|
$27.41 | ||
| 7 |
Signal Cover Yellow
33410-197-000
|
$5.86 | ||
| 8 |
Bulb (E-Mark), 12V/10W
34905-118-000
|
$5.86 | ||
| 9 |
Signal Bulb Socket
33425-197-000
|
$11.72 | ||
| 10 |
Signal Socket
33451-223-000
|
$10.62 | ||
| 11 |
L.Signal Ass'Y(E-Mark), 21W
33450-226-00A
|
$29.00 | ||
| 12 |
L.Signal Bulb Socket
33435-197-000
|
$11.72 | ||
| 13 |
Pan Flat Head Phillips Bolt, 6*12
93701-06012G
|
$1.34 | ||
| 14 |
Tail Light Ass'Y
33700-154-000
|
$49.17 | ||
| 14 |
Tail Light Ass'Y, E/SAE MARK
33700-154-001
|
$49.17 | ||
| 15 |
Tail Light Bulb (E-Mark), 12V 21/5W
34906-105-00A
|
$7.32 | ||
| 16 |
Tail Light Lens
33702-154-000
|
$11.72 |
