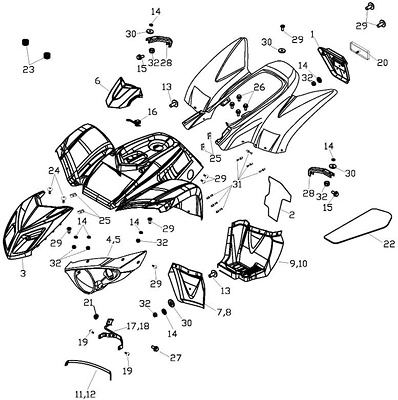

Body Cover, Seat (Adly ATV 220S)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Plate
80118-226-000
|
$19.31 | ||
| 2 |
Rear Fender Isolation Gasket
80114-261-000
|
|||
| 3 |
Front Visor
64302-226-000
|
$31.40 | ||
| 4 |
Left Light Cover
64325-226-000
|
$30.19 | ||
| 5 |
Right Light Cover
64326-226-000
|
$24.15 | ||
| 6 |
Trim.Speedometer Lid
64212-226-000RD
|
$26.36 | ||
| 6 |
Trim.Speedometer Lid
64212-226-000BU
|
$26.36 | ||
| 6 |
Trim.Speedometer Lid
64212-226-000YL
|
$26.36 | ||
| 7 |
L.Front Fender
61100-226-000
|
$18.45 | ||
| 8 |
R.Front Fender
61101-226-000
|
|||
| 9 |
L.Rear Fender
80115-261-000
|
|||
| 10 |
R.Rear Fender
80116-261-000
|
|||
| 11 |
Front Cover Left Fixed Pole
64307-226-000
|
$22.94 | ||
| 12 |
Front Cover Right Fixed P0Le
64308-226-000
|
$19.32 | ||
| 13 |
Pan Phillips Bolt, 6*20
93800-06020K
|
|||
| 14 |
Plain Washer, 6*18*2
94101-0618020B
|
$0.50 | ||
| 15 |
Hex Flange Bolt, M6*20
96000-06020-10G
|
$1.84 | ||
| 16 |
Speedometer Bracket
37210-226-000
|
$8.79 | ||
| 17 |
Head Light Left Setting Ring Socket
33154-226-00B
|
$25.30 | ||
| 18 |
Head Light Ring Setting Ring Socket
33155-226-00B
|
$25.30 |
