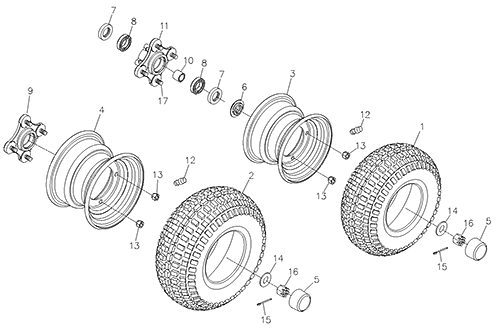

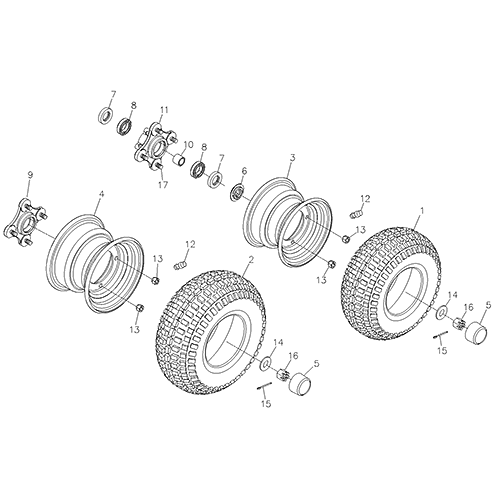

Wheel Front and Rear (Adly ATV 200S)

Change Assembly

Sort By:

Show:

#	Product Name	Price:
1	Front Tire 22x7-10 42711-182-00C
2	Rear Tire 20×11-9 42811-182-00C
3	Front Rim, 10*5.5 42701-169-000
4	Rear Rim, 9*8.5 42801-169-00D
5	Rubber Cover, ADLY 42814-145-000
6	Collar 42707-169-000	$25.04
7	Oil Seal, 29.343.64.5 96500-29435	$3.61
8	Radial Ball Bearing, 6004ZZCM/2A-T0 96100-6004ZZ	$16.99
9	Rear Shaft Hub 42037-169-000
10	Coller 42705-169-000	$7.32
11	Front Wheel Hub 42036-169-000	$72.69
12	Air Nozzle 42616-145-000	$4.18
13	Wheel Nut, M10*15 94001-10015B	$2.09
14	Plane Washer, 18404.5 94101-1840045C	$4.18
15	Cotter Pin, 3*32 94201-30320B
16	Scotch Nut, M18 94051-18000B	$5.86
17	Hub Stud Bolt, 10*35 96005-10035C	$3.91

Showing 1 to 17 of 17 (1 Pages)
