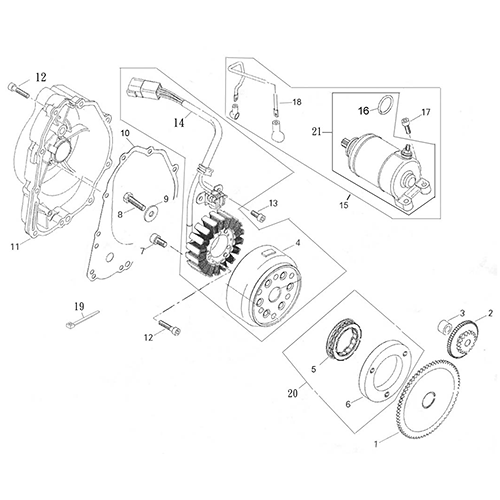

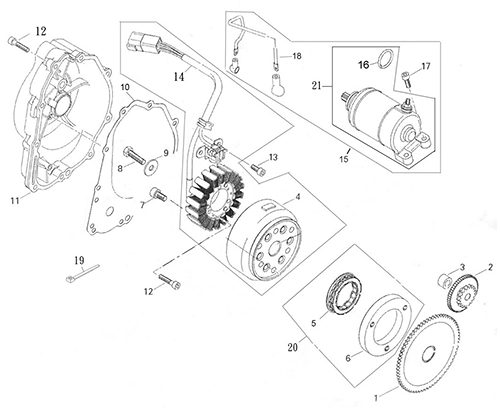

Magneto (Adly ATV 200S)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Free Wheel Gear 67 Ass'Y
28220-179-000
|
$72.69 | ||
| 2 |
Idle Gear 54/17T
28422-179-000
|
$49.17 | ||
| 3 |
Distance Sleeve, 10*17*11.2
96401-101711
|
$4.69 | ||
| 4 |
Generator Ass'Y, SUMITIMO
31100-179-001
|
$252.70 | ||
| 5 |
Sprag Clutch
28500-179-001
|
|||
| 6 |
Starting Clutch Housing
28125-179-000
|
|||
| 7 |
Hex Socket Bolt, 8*18
91000-08018CL
|
$2.93 | ||
| 8 |
Hex Flange Bolt, 8*30
96000-08030GL-Z
|
|||
| 9 |
Washer
22145-179-000
|
$2.34 | ||
| 10 |
Gasket(Rev.1)
11393-179-000
|
$11.13 | ||
| 11 |
Right Crankcase Cover
11330-261-000
|
$85.01 | ||
| 12 |
Hex Socket Bolt, 6*30
91000-06030C
|
$3.68 | ||
| 13 |
Hex Socket Bolt, 6*16
91000-06016C
|
|||
| 14 |
Stator Comp.
31120-179-001
|
$172.48 | ||
| 15 |
Electric Starting Ass'Y
31200-261-000
|
$225.96 | ||
| 16 |
O-Ring, 24.4*3.1
91324-179-000
|
|||
| 17 |
Hex Socket Bolt, 6*20
91000-06020C
|
$0.67 | ||
| 18 |
Positive Cable
32108-261-000
|
|||
| 19 |
Tie Rap, 2.5*100
90669-179-000
|
$2.09 | ||
| 20 |
Starter Clutch Ass'Y
28410-179-000
|
$89.17 |
