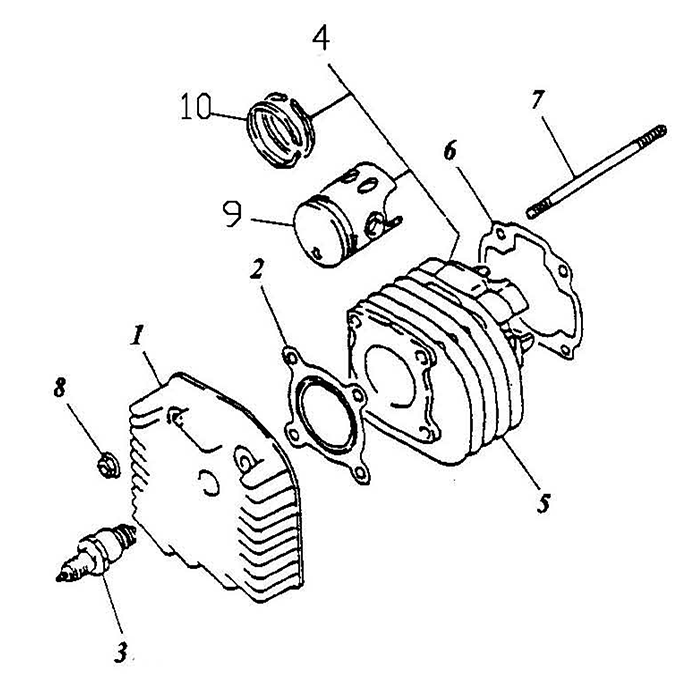

Cylinder | Cylinder Head (Adly Atv 100D)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 0 |
Adly 90cc 54mm Cylinder Head Gasket
12251-208-000
|
$13.79 | ||
| 1 |
Cylinder Head, 52mm
12201-117-000
|
$25.00 | ||
| 2 |
Adly 90cc Cylinder Head Gasket
12251-117-000
|
$12.67 | ||
| 3 |
Spark Plug
98076-101-00A
|
$6.75 | ||
| 4 |
Cylinder Comp
12301-117-00A
|
$183.51 | ||
| 5 |
Cylinder
12101-117-000
|
$104.99 | ||
| 6 |
Cylinder Gasket, 57
12191-117-000
|
$8.60 | ||
| 7 |
Stud Bolt, 7*128
91001-07128C
|
|||
| 8 |
Hex Flange Nut With Serration, 7MM
94050-07000C
|
$1.00 | ||
| 9 |
Piston Ring Set, 52*1.2*2.05
13011-117-0BA
|
$25.10 | ||
| 10 |
Piston, 52
13100-117-000
|
$46.39 |
